FDCC1602N-NSWBBW-91LE

FORDATA  FDCC1602N-NSWBBW-91LE  字母数字液晶屏, 16 x 2, 蓝色底白色字, 3 V, 并行, 英式, 日式, 透射

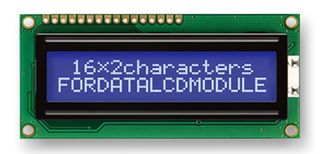

The is a 16-character x 2 lines character type dot matrix LCD Module with negative transmissive polarizer, edge type LED backlight. It features white backlight colour, blue STN LCD panel type and SUNPLUS controller IC.

.

6 O"clock Viewing angle bottom

.

1/16 Display duty, 1/5 driving bias

.

Fast response time

.

High contrast

.

3 Times 100% QC examination

.

Protection circuit

.

Long life

.

Anti-UV version

.

Twice selection of LED materials

.

N series technology

.

White LED backlight

.

Preferred view angle - 6 o"clock

.

-20 to +70°C wide operating temperature range

.

16 way through hole SIL top, left connection, 2.54mm pitch

.

Overall max dimensions - 80.0 x 36.0 x 13.5mm

.

Viewing area - 64.5 x 13.8mm

.

5mm character actual dimension 2.95 x 4.35mm
