FCE17B25SA410

25 位置 2.76mm 焊接 RA 通孔 端口 滤波 D-Sub

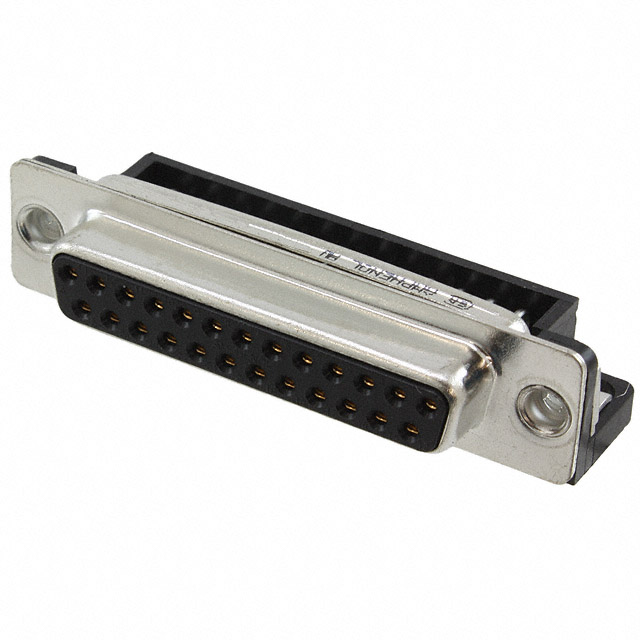

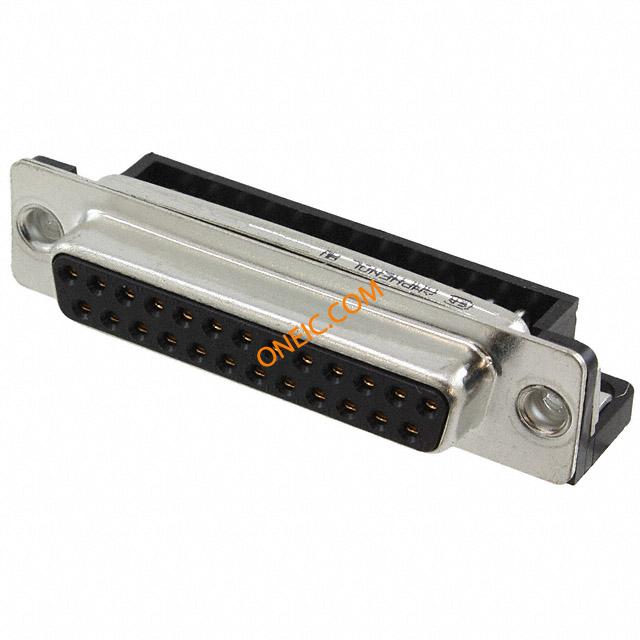

The filtered d-sub DVI connector from is perfect for communicating between serial connections with minimal interference. This 2-row connector has a single port. Its pitch is 2.76 mm. This socket type connector"s 25 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. FCE17B25SA410 is housed in thermoplastic. This device has a maximum current rating of 5 A. This DVI connector has an operating temperature of -40 to 85 °C. Its 25 terminals use the solder termination method. This product is 53.04 mm long, 12.55 mm tall and 18.64 mm deep.
