FTSH-135-02-L-DV

FTSH-135-02-L-DV图片1
FTSH-135-02-L-DV图片2
FTSH-135-02-L-DV图片3
FTSH-135-02-L-DV图片4
FTSH-135-02-L-DV概述

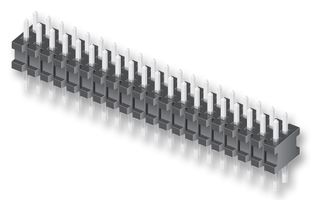

SAMTEC FTSH-135-02-L-DV Board-To-Board Connector, 1.27mm, 70Contacts, Header, FTSH Series, Solder, 2Rows

The FTSH series from are surface mount micro terminal strip headers. It mates with Samtec FFSD, FFTP, CLP and FLE series of connectors. These terminal strip headers are available in end shroud, end shroud with locking clip, end shroud with guide post, end shroud with board lock and ejector shroud option.

.
Pitch spacing is 1.27mm 2 to 50 contacts per row with double row vertical mounting -DV
.
Operating temperature range of -55°C to 125°C
.
Contact material is phosphor bronze
.
Black liquid crystal polymer insulator material
.
10µ" gold plated contacts
.
Complies with UL E111594 and CSA 090871_0_000 standards
FTSH-135-02-L-DV中文资料参数规格
技术参数

触点数 70

极性 Male

触点电镀 Gold

排数 2

封装参数

安装方式 Solder

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

FTSH-135-02-L-DV引脚图与封装图

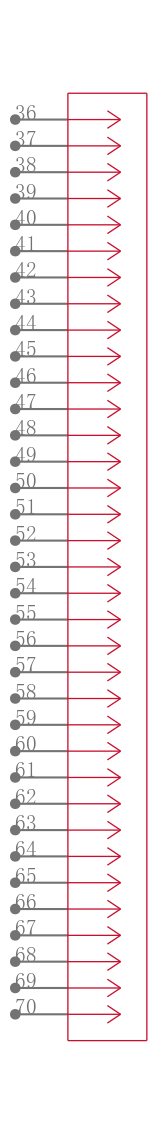

FTSH-135-02-L-DV引脚图

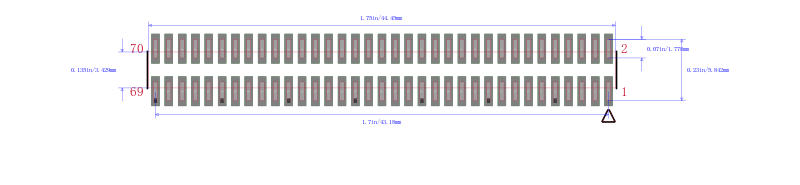

FTSH-135-02-L-DV封装图

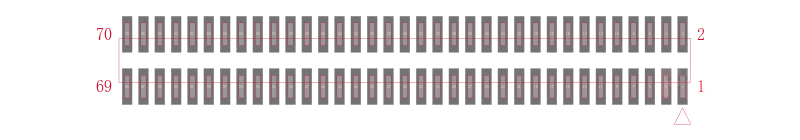

FTSH-135-02-L-DV封装焊盘图
