FTSH-135-04-L-D

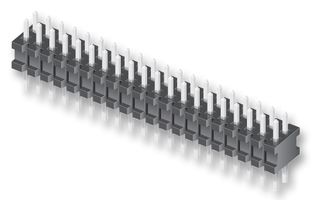

FTSH-135-04-L-D图片1

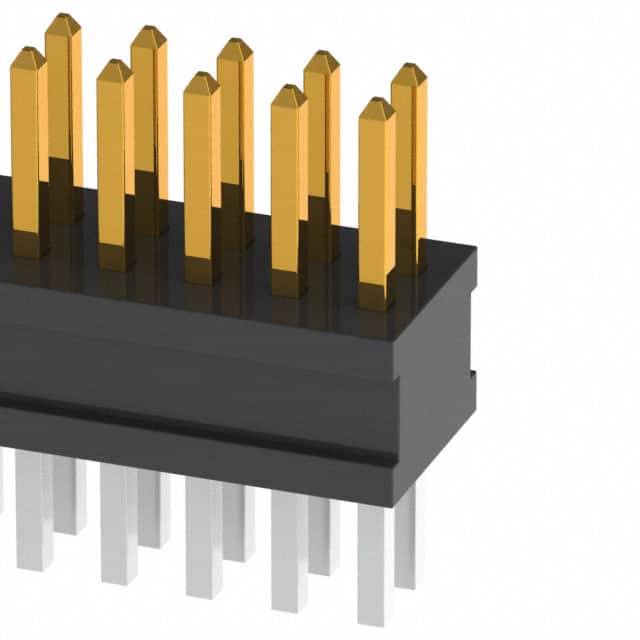

FTSH-135-04-L-D图片2
FTSH-135-04-L-D图片3
FTSH-135-04-L-D图片4
FTSH-135-04-L-D图片5
FTSH-135-04-L-D图片6
FTSH-135-04-L-D概述

SAMTEC FTSH-135-04-L-D Board-To-Board Connector, 1.27mm, 70Contacts, Header, FTSH Series, Solder, 2Rows

针座 通孔 70 位置 0.050"(1.27mm)


得捷:
CONN HEADER VERT 70POS 1.27MM


艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded FTSH-135-04-L-D header connector from Samtec. This HDR connector&s;s 70 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 1.27 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 1.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. FTSH-135-04-L-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 44.45 mm long, 6.32 mm tall and 3.43 mm deep. It uses the solder termination method.


Newark:
# SAMTEC  FTSH-135-04-L-D  Board-To-Board Connector, 1.27 mm, 70 Contacts, Header, FTSH Series, Solder, 2 Rows


FTSH-135-04-L-D中文资料参数规格
技术参数

触点数 70

极性 Male

触点电镀 Gold

排数 2

额定电流Max 3.3A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Solder

外形尺寸

高度 6.32 mm

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Active

包装方式 Tube

制造应用 Industrial, -

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买FTSH-135-04-L-D
型号: FTSH-135-04-L-D
描述:SAMTEC FTSH-135-04-L-D Board-To-Board Connector, 1.27mm, 70Contacts, Header, FTSH Series, Solder, 2Rows
