FIT3001/4 BK068

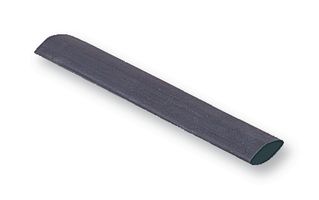

ALPHA WIRE FIT3001/4 BK068 Heat Shrink Tubing, Pack of 10 152.4mm Pieces, 6.35mm, 0.25 ", 2.5:1, Black, 6 ", 152.4mm

Heat Shrink Tubing, 1500 psi Tensile Strength, 500 V/mil Dielectric Strength

When heated, the outer jacket shrinks and the inner wall melts and flows. The result is semi-rigid tubing with an inner wall that seals and provides tough mechanical protection. The tubing shrinks to 15% to 40% of the supplied diameter depending on the size at 135°C. Longitudinal shrinkage is 10% nominal. Non-flame retardant. Does not support fungus growth.

.

* Operating Temperature:** -55°C to 110°C. ** Tensile Strength:** 1500 psi nominal. All sizes available in black, but only one additional color is available for each size see right. For 6" lengths, insert "5" where N appears in the stock number. For 4" lengths, insert "7" where N appears in the stock number.

* MIL-l-23053/4B, Class 1 AMS-3634

* UL Standard 224

* UL Recognized Black Only
