FIT7501/2 BK105

FIT7501/2 BK105图片1
FIT7501/2 BK105图片2
FIT7501/2 BK105图片3
FIT7501/2 BK105图片4
FIT7501/2 BK105图片5
FIT7501/2 BK105概述

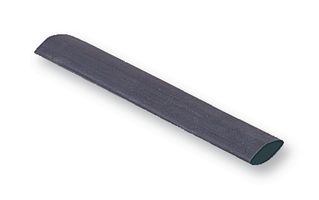

衬胶热缩管, 2:1, 0.499 ", 12.7 mm, 黑色, 4 ft, 1.22 m

Bonding Adhesive-Lined, Self-Extinguishing Flammability Rating, Irradiated Polyolefin Material

Recommended for use with XTRA

* Guard® 2 Extra Rugged Polyurethane Jacketed Cables. Non-corrosive, fungus resistant. ** Water Absorption:** 0.5%. ** Specifications: Operating Temperature:** –55°C to 110°C. ** Shrink Ratio:** 2 to 1 @ 121°C. ** Tensile Strength:** 1500 psi. ** Ultimate Elongation:** 200%. ** Longitudinal Shrinkage:** –10%. ** Dielectric Strength:** 400 V/mil. ** Color:** Black. UL Standard 224, MIL-DTL-23053/4D, Class 2.

** Choose FIT®-750 for:**

* Bonding to Substrates

* Permanent Water and Corrosion Protection

* Total Encapsulation

* Reduced Diameter

* Internal Isolation of Individual Substrates — “Pinching” ** FIT®-750 Applications:**

* XTRA

* Guard® 2 Applications

* Moisture Protection of Substrates

* Permanent Sealing of Substrates

* Wire Isolation within A Harness

* Permanent Joint Splice Repair

* General Purpose Usage with Adhesive

FIT7501/2 BK105中文资料参数规格
外形尺寸

长度 1.22 m

内径尺寸 0.5 in

物理参数

颜色 Black

材质 Polyolefin

工作温度 -55℃ ~ 110℃

其他

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买FIT7501/2 BK105
型号: FIT7501/2 BK105
制造商: Alpha Wire
描述:衬胶热缩管, 2:1, 0.499 ", 12.7 mm, 黑色, 4 ft, 1.22 m
