FTS-114-01-L-DV

SAMTEC FTS-114-01-L-DV Board-To-Board Connector, 1.27mm, 28Contacts, Header, FTS Series, Surface Mount, 2Rows

针座 表面贴装型 28 位置 0.050"（1.27mm）

得捷:
CONN HEADER SMD 28POS 1.27MM

艾睿:

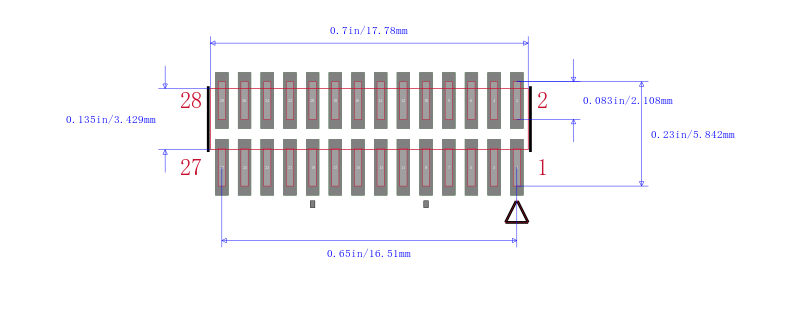

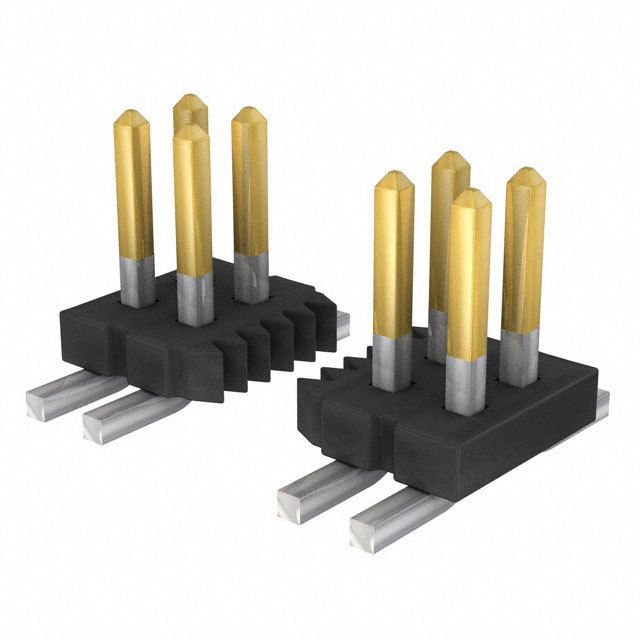

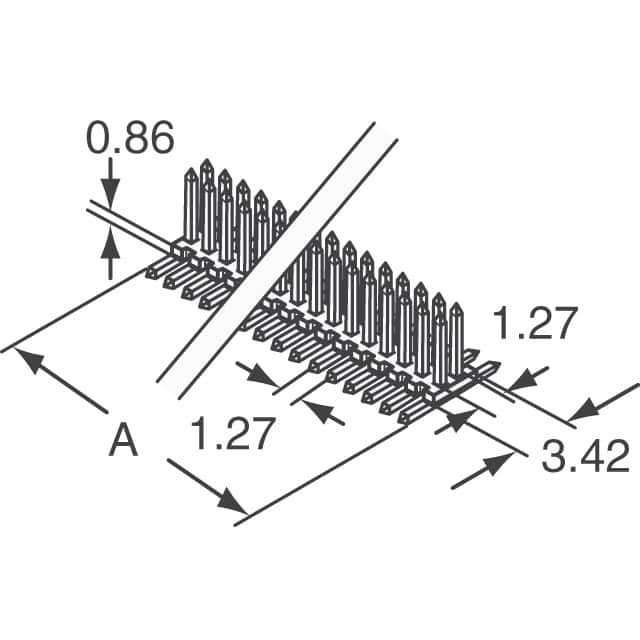

Samtec&s;s unshrouded FTS-114-01-L-DV header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 28 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 1.27 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 17.78 mm long, 4.32 mm tall and 5.84 mm deep. FTS-114-01-L-DV is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 28 POS 1.27mm Solder ST SMD Tube

Newark:
# SAMTEC  FTS-114-01-L-DV  Board-To-Board Connector, 1.27 mm, 28 Contacts, Header, FTS Series, Surface Mount, 2 Rows
