FTSH-108-01-L-DH-TR

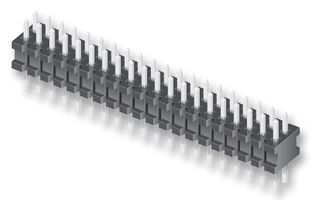

SAMTEC FTSH-108-01-L-DH-TR Board-To-Board Connector, 1.27mm, 16Contacts, Header, FTSH Series, Surface Mount, 2Rows

The FTSH series from are surface mount micro terminal strip headers. It mates with Samtec FFSD, FFTP, CLP and FLE series of connectors. These terminal strip headers are available in end shroud, end shroud with locking clip, end shroud with guide post, end shroud with board lock and ejector shroud option.

.

Pitch spacing is 1.27mm 2 to 50 contacts per row with double row horizontal mounting -DH

.

Operating temperature range of -55°C to 125°C

.

Contact material is phosphor bronze

.

Black liquid crystal polymer insulator material

.

10µ" gold plated contacts

.

Complies with UL E111594 and CSA 090871_0_000 standards
