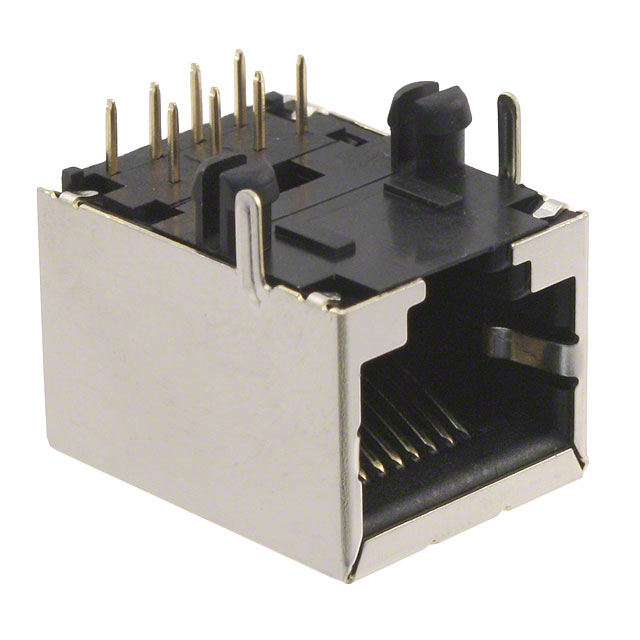

AMPHENOL COMMERCIAL PRODUCTS FRJAE-438 模块连接器, RJ45, FRJAE系列, 插座, 8 触点, 8 路, 1 端口
The FRJAE series filtered and shielded Modular Jack offer effective EMC control with-in standard RJ11 and RJ45 connector footprints. EMC control is offered by a completely shielded connector and/or with the use of a high resistivity, high impedance ferrite block. No board layout changes are required, simply replace the standard non-filtered connector for superior EMC performance.
- .
- 1.5A Current rating per pin
- .
- 125VAC Voltage rating
- .
- 20mR Contact resistance maximum
- .
- 750 Mating and unmating cycles durability
- .
- -55 to 85°C Temperature range
触点数 8
极性 Male
触点电镀 Gold, Gold over Nickel
额定电压DC 125 V
额定电流 1.5 A
排数 1
针脚数 8
拔插次数 750
屏蔽 Yes
额定电压 125 V
安装方式 Through Hole

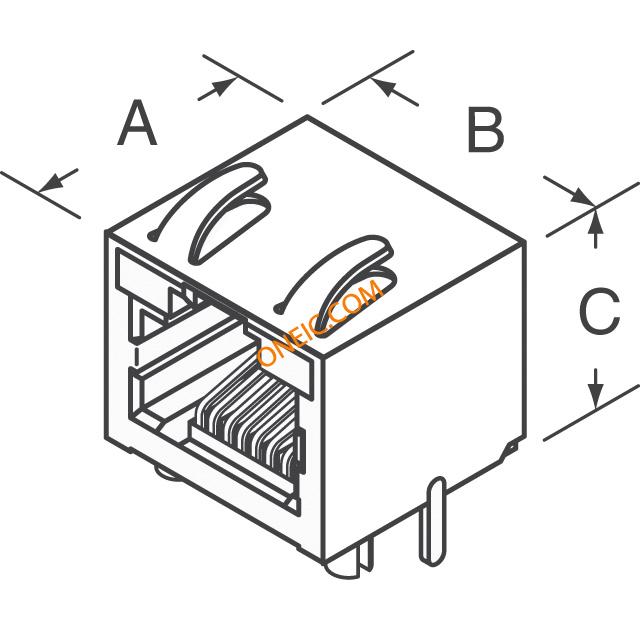

长度 14.6 mm
宽度 18.67 mm
高度 12.95 mm
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FRJAE-438 Amphenol 安费诺 | 当前型号 | 当前型号 |
5558344-1 泰科 | 功能相似 | FRJAE-438和5558344-1的区别 |
95501-2881 莫仕 | 功能相似 | FRJAE-438和95501-2881的区别 |
95540-2881 莫仕 | 功能相似 | FRJAE-438和95540-2881的区别 |
