FP3-1R0-R概述

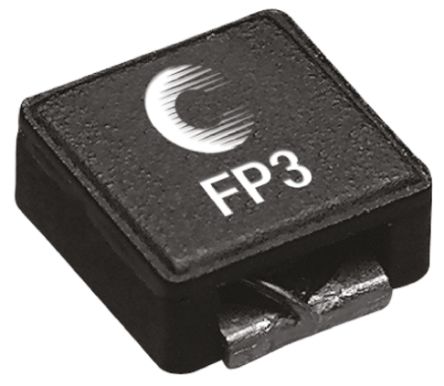

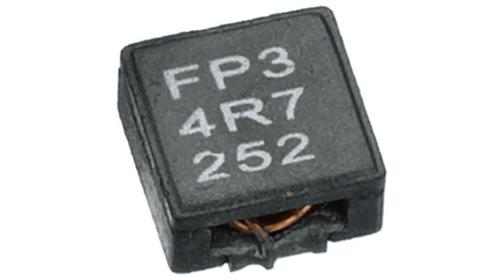

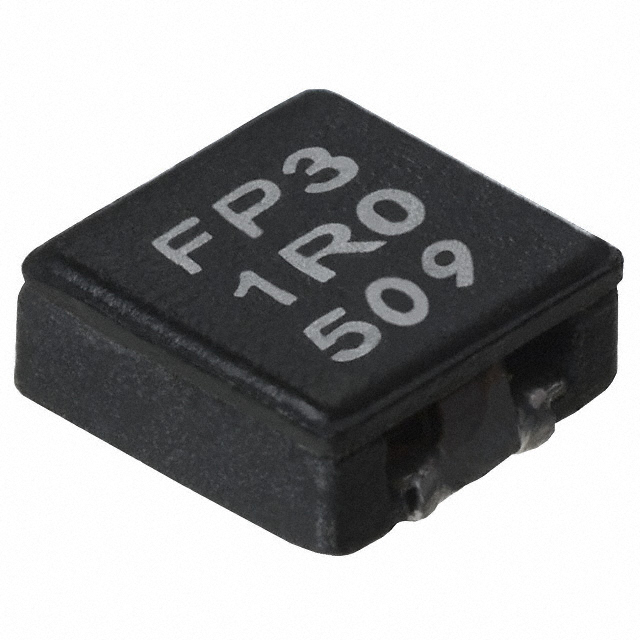

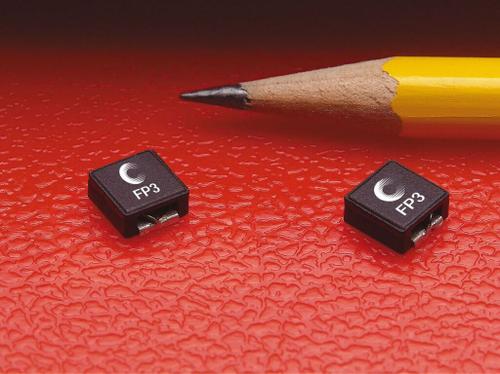

COILTRONICS  FP3-1R0-R  电感, SMD, 1uH, 15%容差, FLAT-PAC 3封装

Low Profile, High Current Inductors - FLAT-PAC™ 3 Series

FLAT-PAC™ 3 Series low profile high current inductors with a maximum total operating temperature of 155°C. The FLAT-PAC™ 3 series inductors have a high resistance to aging by virtue of their construction utilising a high temperature powdered iron material with a non-organic binder. Applications for FLAT-PAC™3 series include: computers and portable power devices; Energy storage applications; DC-DC converters; Input - Output filter applications

### 非标准 SMT 器(扼流圈)

FP3-1R0-R中文资料参数规格
技术参数

额定电流 6.26 A

容差 ±15 %

电感 1 µH

屏蔽 No

电感公差 ±15 %

测试频率 100 kHz

电阻DC) ≤11.2 mΩ

工作温度Max 155 ℃

工作温度Min -40 ℃

电阻DC Max 0.0112 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 FP-3

外形尺寸

长度 7.25 mm

宽度 6.70 mm

高度 3 mm

封装 FP-3

物理参数

工作温度 -40℃ ~ 155℃

其他

产品生命周期 Unknown

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买FP3-1R0-R
型号: FP3-1R0-R
制造商: Cooper Bussmann 库柏
描述:COILTRONICS  FP3-1R0-R  电感, SMD, 1uH, 15%容差, FLAT-PAC 3封装
替代型号FP3-1R0-R
型号/品牌 代替类型 替代型号对比

FP3-1R0-R

Cooper Bussmann 库柏

当前型号

当前型号

FP3-1R0

伊顿巴斯曼

功能相似

FP3-1R0-R和FP3-1R0的区别
