Time Control; Surface Or Din Rail Mount; Screw; Spdt; 24V; -18 To Degc

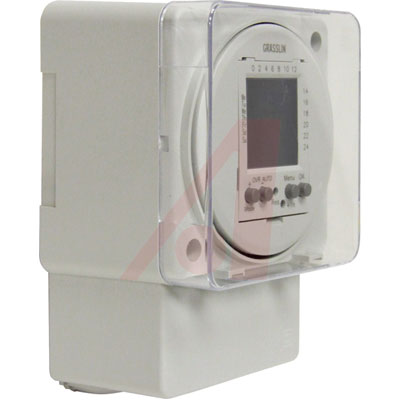

**FM1D20A and FM1D50A Surface or DIN Rail Mounting Size:** 2.83" W × 4.0" L × 2.06" D. Screw terminals, 10-24 AWG wire.
**Features:**
* SPDT Switch Rating: 16 A @ 250 VAC Resistive
* Manual On-Off-Auto Override
* UL Recognized, US and Canada
Allied Electronics:
TIME CONTROL; SURFACE OR DIN RAIL MOUNT; SCREW; SPDT; 24 V; -18 TO DEGC
额定功率 0.5 W
电源电压 24VAC, 24VDC
安装方式 Panel, Flush
Brand/Series FM/1 Digit 20 Series
Contact Form SPDT
Dimensions 60mm L x 62mm W x 32mm H
Input Type Electronic
Mounting Type Flush/Panel
Output Type Relay
Power Rating 500/1000 W
Primary Type Controller
Special Features Battery Backup, Large LCD, Programmable
Standards UL, cUL
Supply Voltage 24 VAC/VDC
Termination Quick Connect
Type Digital Timer
