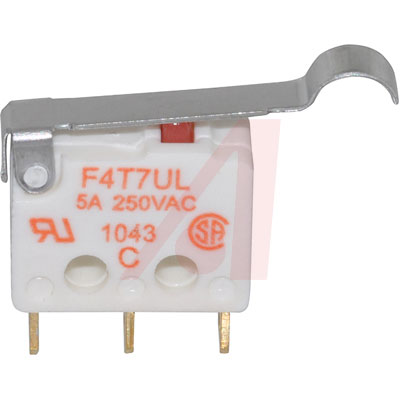

Switch, ULTRAMiniature Snap Action, 5A, 125/250VAC, SIM. Roller 0.67Inch
F4 Series Snap-Action Microswitches Ultraminiature
Ultraminiature Snap Action Microswitch, 5 Amp, 125/250 VAC. Solder terminals. Switches are available with silver or gold plate on silver contacts. Actuator lengths are measured from front mounting peg. UL Recognized and CSA Certified.- .
- * Dimensions** : 0.50" × 0.20" × 0.39".
** F1 Series**
* High Electrical Rating from a Very Small Switch
* Gold Plated Contacts
* PCB Mounting from Side
* UL and CSA Approved
** F4 Series**
* High Electrical Rating from a Very Small Switch
* Long Mechanical and Electrical Life
* Gold-Plated Contact Option
**
V4N Series
**
* Peg Mounting Option
* Solder Terminals
* 2.8 mm Faston Quick Connect Terminals
* PCB Terminals
* Sealed IP 67/Unsealed IP 40
* Pre-Wired Option
* Snap-On Terminal Covers
**
V3S Series
**
* IEC IP67 Sealed Mechanism
* Industry Standard Miniature Switch Mounting Hole Positions
* Pre-Wired — Horizontal Leads
* UL, CSA and ENEC Approved
**
V9N Series- .
- *
* Robust Metal Housing
* IEC IP67 Sealed Mechanism
* High Temperature Unwired Versions
* Pre-Wired Options — Vertical and Horizontal Leads
** XC Series**
* Wide Range of Actuating Forces
* Long Mechanical and Electrical Life
* Solder, PCB, Faston Quick Connect Terminals
** XG Series**
* Wide Number of Force Variants
* High Mechanical and Electrical Life
* Solder Terminals
* Quick Connect
* PCB Terminals
* High Temperature Versions
* Wide Range of Levers
