FP20-600

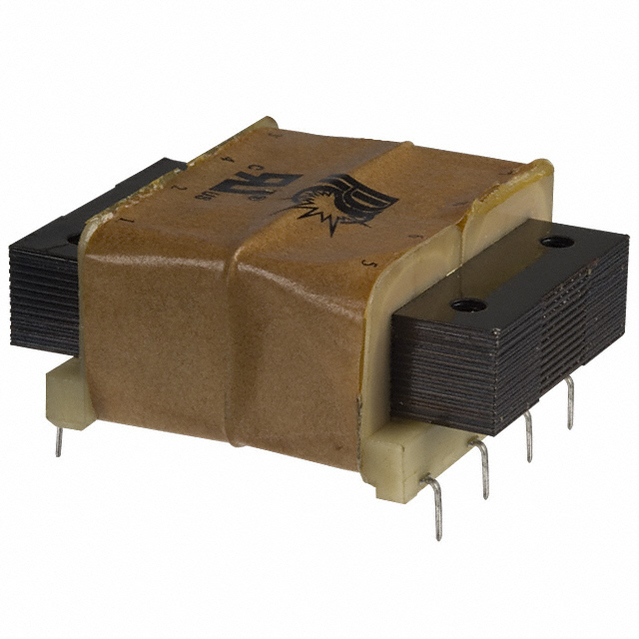

FP20-600图片1
FP20-600图片2
FP20-600图片3
FP20-600图片4
FP20-600图片5
FP20-600图片6
FP20-600图片7
FP20-600概述

Power Transformer 2000Vrms Dual Prim. Dual Sec. 230V/115V Prim. 20V/10V Sec. Through Hole

The TRIAD Flat Pack™ power transformer from TRIAD Magnetics is designed to meet the needs of low clearance PC board and solid state power designs. These units can also be used for control and instrumentation applications. Voltages and currents were chosen for widely used power applications. It is offered in a dual primary and dual secondary configuration.
.
*Low Profile**: Allows 3⁄4" card spacing for 2.5 VA units, allows 1" card spacing for 6 VA units, allows 11⁄4" card spacing for 12 VA units.

* Made in China

* Contact Allied for Other Class 2/3 Models

FP20-600中文资料参数规格
技术参数

额定电流 600 mA

额定功率 12 VA

隔离电压 2000 Vrms

额定功率Max 12 VA

封装参数

安装方式 Through Hole

引脚数 8

封装 DIP

外形尺寸

长度 1.875 in

宽度 1.562 in

高度 22.2 mm

封装 DIP

物理参数

重量 312.07 g

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504314035

数据手册

在线购买FP20-600
型号: FP20-600
制造商: Triad Magnetics
描述:Power Transformer 2000Vrms Dual Prim. Dual Sec. 230V/115V Prim. 20V/10V Sec. Through Hole
替代型号FP20-600
型号/品牌 代替类型 替代型号对比

FP20-600

Triad Magnetics

当前型号

当前型号

FP20-600-B

Triad Magnetics

功能相似

FP20-600和FP20-600-B的区别
