FS36-350

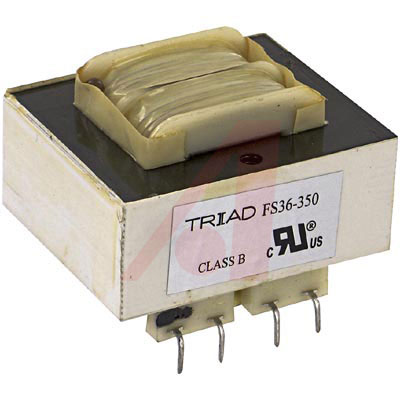

FS36-350图片1
FS36-350图片2
FS36-350图片3
FS36-350图片4
FS36-350图片5
FS36-350图片6
FS36-350图片7
FS36-350图片8
FS36-350图片9
FS36-350图片10
FS36-350概述

Power Transformer Dual Prim. Dual Sec. 230V/115V Prim. 36V/18V Sec. Through Hole

The TRIAD Split Pack™ split bobbin transformer from TRIAD Magnetics is an extremely versatile tool for PC board applications. Split Pack™ transformers are nonconcentrically wound — with primaries and secondaries side-by-side. Unlike the secondary on-top-of primary designs of standard PC board transformers, the split bobbin winding and low capacitive coupling eliminate costly electrostatic shielding. It is offered in a dual secondary configuration with either single or dual primaries.

* Made in China

* Contact Allied for Other Class 2/3 Models

FS36-350中文资料参数规格
技术参数

频率 60.0 Hz

电源电压DC 230 V

额定电流 700 mA

额定功率 12 VA

输入电压DC 115 V

隔离电压 2500 Vrms

额定功率Max 12 VA

封装参数

安装方式 Through Hole

引脚数 8

封装 DIP

外形尺寸

长度 47.6 mm

宽度 39.7 mm

高度 36.5 mm

封装 DIP

物理参数

重量 317.51 g

工作温度 25 ℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504314035

数据手册

在线购买FS36-350
型号: FS36-350
制造商: Triad Magnetics
描述:Power Transformer Dual Prim. Dual Sec. 230V/115V Prim. 36V/18V Sec. Through Hole
