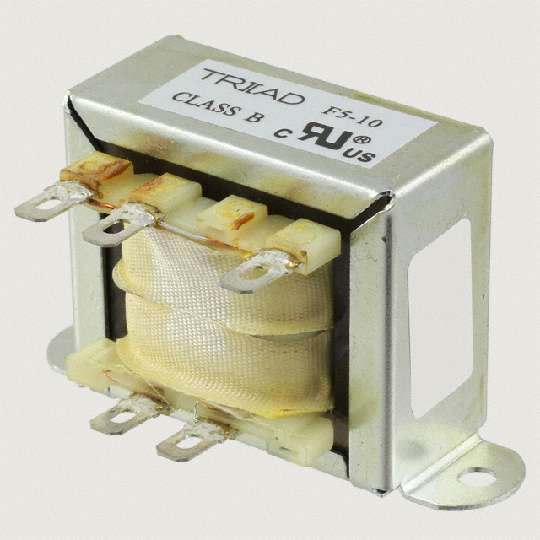

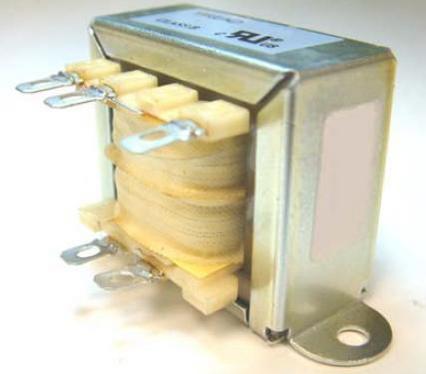

F5-10

Transformer; 12VA; Chassis; Pri:115V; Sec:10VCT; Sec:1.2A; Solder Lug; 50/60Hz; 1-3/8In.

The TRIAD quick pack small power transformer series from TRIAD Magnetics offers a significant reduction in size and weight for a given VA rating. These transformers are available in six sizes for a wide variety of applications. They are bobbin wound for reduced size and small operating space. Split bobbin non-concentric winding eliminates costly electrostatic shielding. Termination is suitable for quick connects or soldering.

.

*Primary:** 115 V or 115/230 V, 50/60 Hz.
