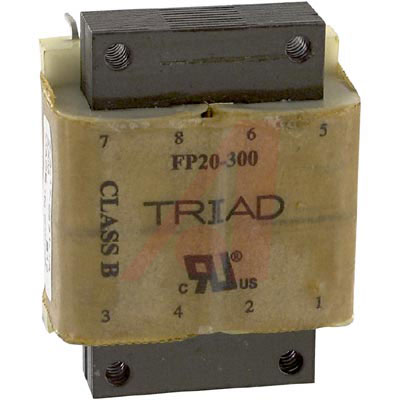

FP20-300

Transformer; 6VA; Sec:Ser 0.3A, Par 0.6A; Pri:115/230V; Sec:Ser 20VCT, Par 10V; PC

The TRIAD Flat Pack™ power transformer from TRIAD Magnetics is designed to meet the needs of low clearance PC board and solid state power designs. These units can also be used for control and instrumentation applications. Voltages and currents were chosen for widely used power applications. It is offered in a dual primary and dual secondary configuration.

.

*Low Profile**: Allows 3⁄4" card spacing for 2.5 VA units, allows 1" card spacing for 6 VA units, allows 11⁄4" card spacing for 12 VA units.

* Made in China

* Contact Allied for Other Class 2/3 Models
