FKP1T003904B00KSSD中文资料参数规格
技术参数
电容 390 pF
封装参数
安装方式 Through Hole
物理参数
工作温度 -55℃ ~ 100℃
其他
Type of capacitor polypropylene
Capacitance 390pF
Terminal pitch 15mm
Tolerance ±10%
Capacitor application high frequency circuits, for high current applications, impulse circuits
Body dimensions 5 x 11 x 18mm
Climate class 55/100/56
Operating temperature -55...100°C
Enclosure material self-extinguishing, UL94V-0
Pulse resistance 51kV/μs
Mounting THT
Max. operating voltage 650V AC, 1600V DC
Capacitance - nF 0.39nF
在线购买FKP1T003904B00KSSD
型号： FKP1T003904B00KSSD
制造商：
WIMA

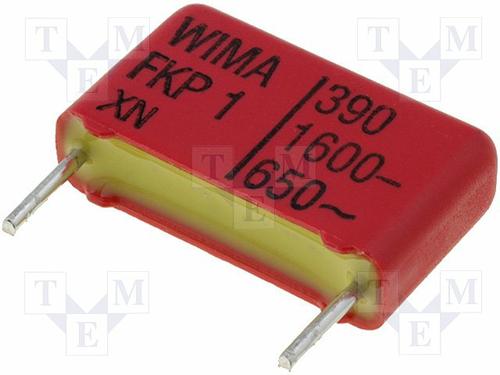

描述：Capacitor: polypropylene; 390pF; 15mm; ±10%; 5x11x18mm; -55÷100℃
