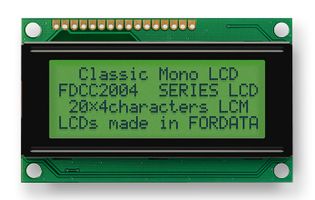

FORDATA FC2004C03-RNNYBW-16LE Alphanumeric LCD, 20 x 4, Black on Yellow / Green, 3V, English, Japanese, Reflective New
* Alphanumeric / character LCD module
-
.
-
4 lines of 20 characters - 4 x 20 also referred to as 20 x 4
-
.
-
Positive mode yellow/green STN material
-
.
-
Appearance - blue/black characters on yellow/green background
-
.
-
Reflective technology, generally for high ambient light and low power applications
-
.
-
Chip on board construction COB for easy mounting
-
.
-
On board controller SPLC780 or equivalent HD44780 derivative
-
.
-
English/Japanese font sets
-
.
-
3V logic supply, standard parallel interface
-
.
-
Display duty 1/8, Driving bias 1/4
-
.
-
No backlight
-
.
-
Preferred view angle - 6 o"clock
-
.
-
-20 to +70°C wide operating temperature range
-
.
-
16 way though hole SIL top, left connection, 2.54mm pitch
