FF400R12KE3B2HOSA1概述
Our well-known 62mm C-series 1200V dual IGBT modules with trench/fieldstop IGBT3, Emitter Controlled High Efficiency diode and M5 power terminals are the right choice for your design.
Summary of Features:
- .
- Superior solution for frequency controlled inverter drives
- .
- UL/CSA Certification with UL1557 E83336
- .
- Operating temperature up to 125 °C max 150 °C
- .
- Optimized switching characteristic like softness and reduced switching losses
- .
- Existing packages with higher current capability
- .
- RoHS compliant
Benefits:
- .
- Flexibility
- .
- Optimal electrical performance
- .
- Highest reliability
FF400R12KE3B2HOSA1中文资料参数规格
技术参数
击穿电压集电极-发射极 1200 V
输入电容Cies 28nF @25V
额定功率Max 2000 W
封装参数
引脚数 7
封装 AG-62MM-1
外形尺寸
封装 AG-62MM-1
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Tray
制造应用 Drives, Uninterruptible Power Supply UPS, Welding, Induction Heating, Commercial and Agriculture Vehicles, Solar
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free

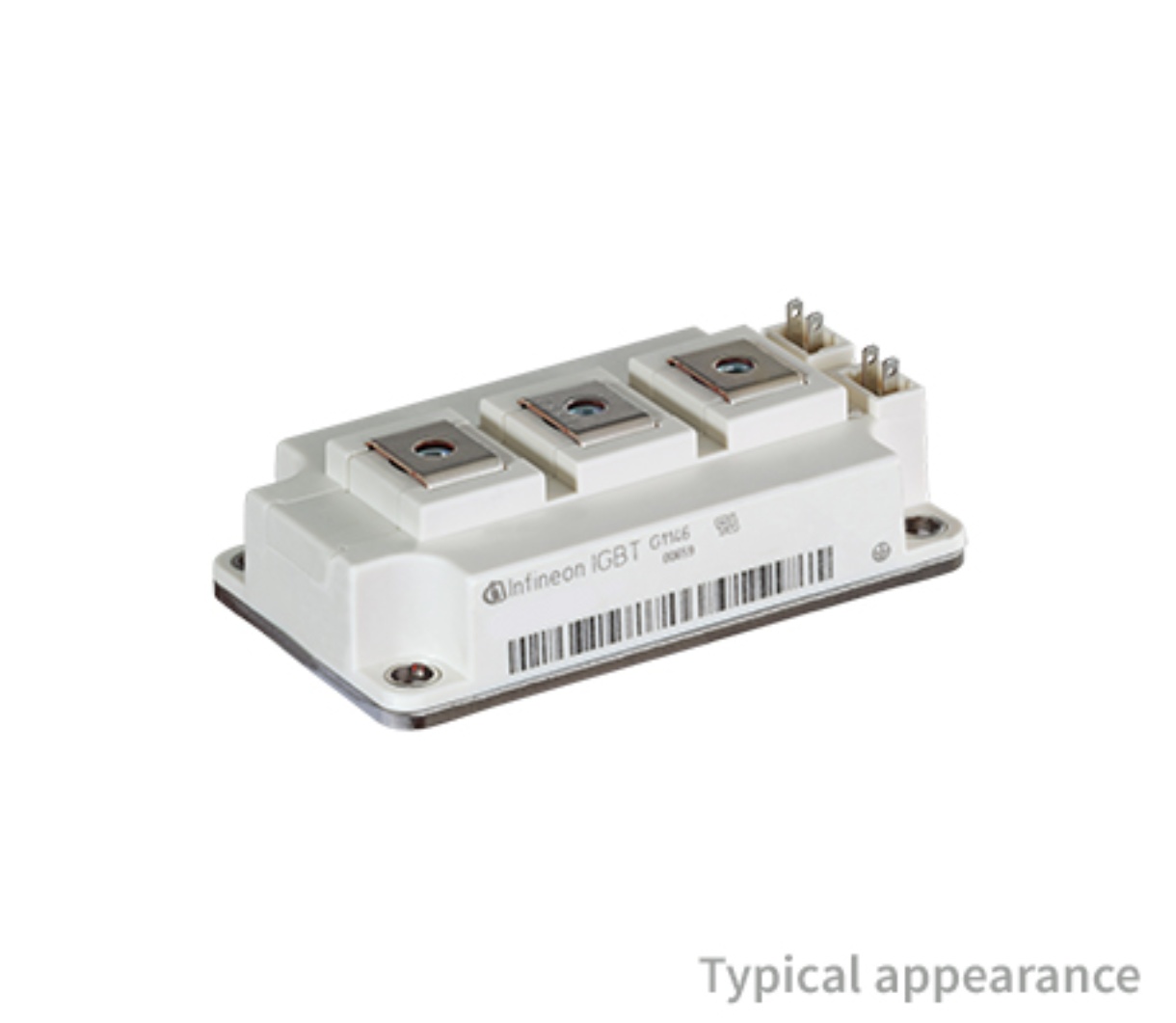

FF400R12KE3B2HOSA1引脚图与封装图
在线购买FF400R12KE3B2HOSA1
型号： FF400R12KE3B2HOSA1
制造商：
Infineon
英飞凌
描述：Our well-known 62mm C-series 1200V dual IGBT modules with trench/fieldstop IGBT3, Emitter Controlled High Efficiency diode and M5 power terminals are the right choice for your design.
