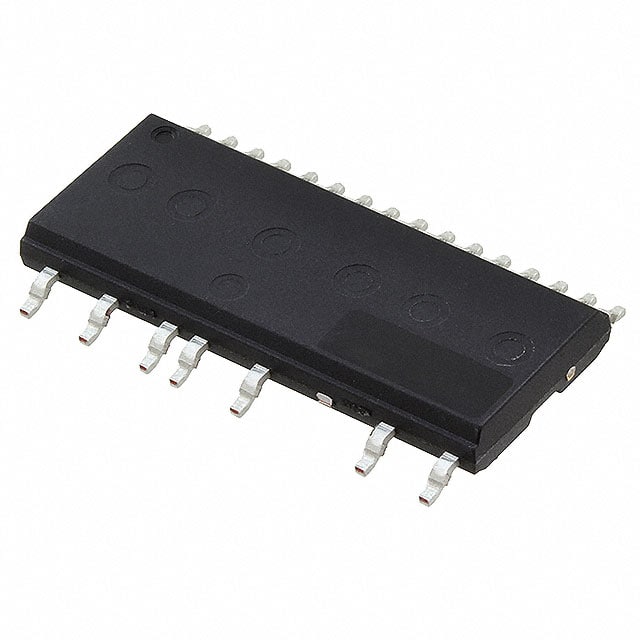

智能功率模块 IPM, MOSFET, 500 V, 5 A, 1500 Vrms, SPM5Q-023, SPM5
The is an advanced Motion SPM 5 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM otors. These modules integrate optimized gate drive ofthe built-in MOSFETs FRFET technology to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts and thermal monitoring. The built-in high-speedHVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module"s internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms.
Features
---
|
- .
- UL Certified No. E209204 UL1557
- .
- Optimized for over 10 kHz Switching Frequency
- .
- 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection
- .
- Built-In Bootstrap Diodes Simplify PCB Layout
- .
- Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing
- .
- Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input
- .
- Optimized for Low Electromagnetic Interference
- .
- HVIC Temperature-Sensing Built-In for Temperature Monitoring
- .
- HVIC for Gate Driving and Under-Voltage Protection
- .
- Isolation Rating: 1500 Vrms / min.
- .
- RoHS Complia
