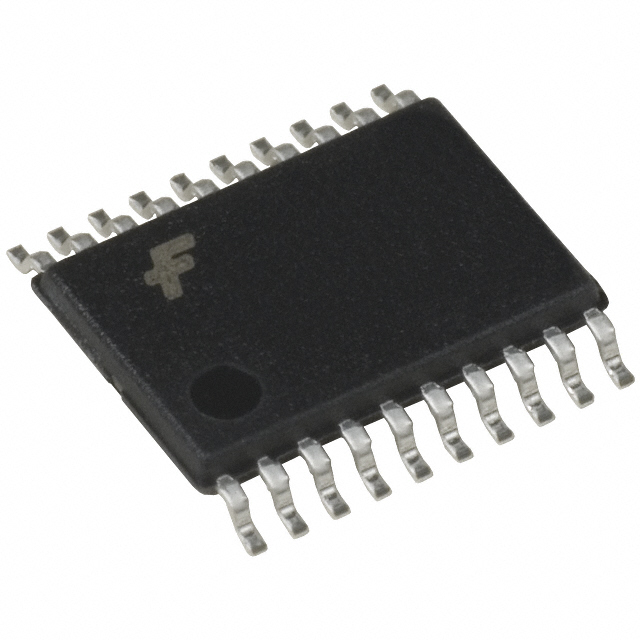

FST3245MTCX

FST3245系列 5.5 V 表面贴装 8位 高速 总线开关 - TSSOP-20

The is a 8-bit Bus Switch provides eight-bits of high-speed CMOS TTL-compatible bus switching in a standard 245 pin-out. The low on-resistance allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device is organized as an eight-bit switch. When OE\ is low, the switch is ON and port A is connected to port B. When OE\ is high, the switch is open and a high-impedance state exists between the two ports.

.

Minimal propagation delay through the switch

.

Low ICC

.

Zero bounce in flow-through mode

.

Control inputs compatible with TTL level

.

4R Switch connection between two ports
