DIODES INC. FZT603TA 单晶体管 双极, 达林顿, NPN, 140 V, 150 MHz, 2 W, 2 A, 15000 hFE

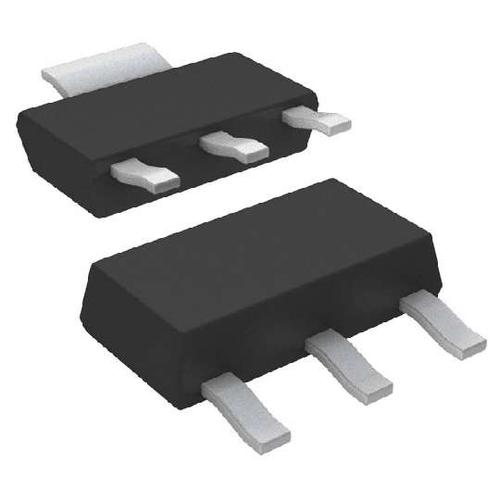

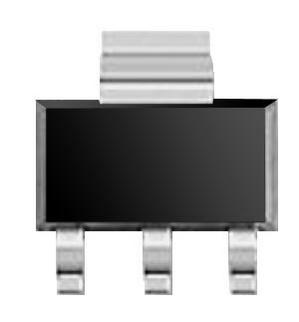

- 双极 BJT - 单 NPN - 达林顿 150MHz 表面贴装型 SOT-223
得捷:
TRANS NPN DARL 80V 2A SOT223-3
立创商城:
FZT603TA
e络盟:
单晶体管 双极, 达林顿, NPN, 140 V, 150 MHz, 2 W, 2 A, 15000 hFE
艾睿:
Diodes Zetex brings you their latest NPN FZT603TA Darlington transistor, a component that can easily provide you with much higher current gain values. This product&s;s maximum continuous DC collector current is 2 A, while its minimum DC current gain is 3000@50mA@5 V|5000@500mA@5V|3000@1A@5V|2000@2A@5V. It has a maximum collector emitter saturation voltage of 0.88@0.25mA@0.25A|0.9@0.4mA@0.4A|1@1mA@1A|1.13@20mA@2A V. This Darlington transistor array&s;s maximum emitter base voltage is 10 V, while its maximum base emitter saturation voltage is 1.95@20mA@2A V. Its maximum power dissipation is 2000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This Darlington transistor array has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 80 V and a maximum emitter base voltage of 10 V.
Allied Electronics:
Trans Darlington NPN 80V 2A SOT223
富昌:
FZT603 系列 80 V 2 A NPN 表面贴装 硅 中等功率 晶体管 - SOT-223-4
Chip1Stop:
Trans Darlington NPN 80V 2A 4-Pin3+Tab SOT-223 T/R
Verical:
Trans Darlington NPN 80V 2A Automotive 4-Pin3+Tab SOT-223 T/R
Newark:
# DIODES INC. FZT603TA Bipolar BJT Single Transistor, Darlington, NPN, 140 V, 150 MHz, 2 W, 2 A, 15000 hFE
儒卓力:
**NPN DARLINGTON 80V 2A SOT223 **
Win Source:
TRANS NPN DARL 80V 2A SOT-223
DeviceMart:
TRANS NPN DAR 80V 2000MA SOT-223
额定电压DC 80.0 V
额定电流 2.00 A
针脚数 3
极性 NPN
耗散功率 2 W
击穿电压集电极-发射极 80 V
集电极最大允许电流 2A
最小电流放大倍数hFE 5000 @500mA, 5V
额定功率Max 2 W
直流电流增益hFE 15000
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 150MHz Min
耗散功率Max 2000 mW
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
封装 TO-261-4
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 军用与航空, 车用, 国防, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FZT603TA Diodes 美台 | 当前型号 | 当前型号 |
FZT603TC 美台 | 功能相似 | FZT603TA和FZT603TC的区别 |
