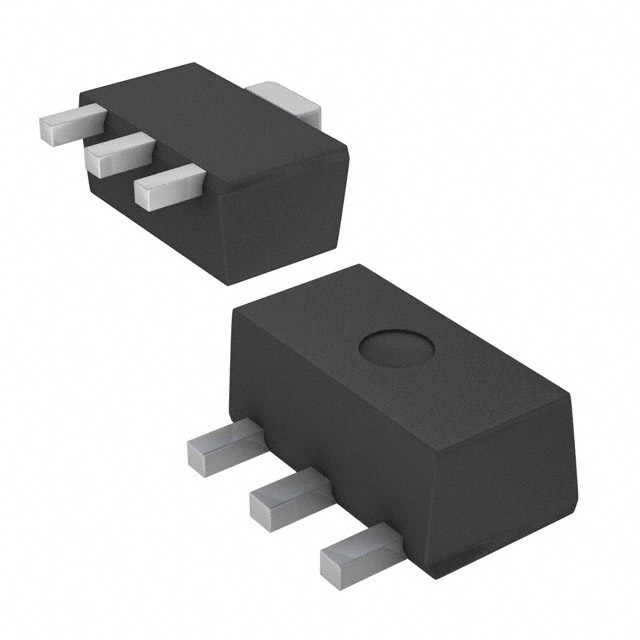

FCX688B 系列 NPN 3 A 12 V 表面贴装 硅 功率 开关晶体管 - SOT-89
Bipolar BJT Transistor NPN 12V 3A 150MHz 2W Surface Mount SOT-89-3
得捷:
TRANS NPN 12V 3A SOT89-3
立创商城:
NPN 12V 3A
艾睿:
Jump-start your electronic circuit design with this versatile NPN FCX688BTA GP BJT from Diodes Zetex. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 2000 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a maximum collector emitter voltage of 12 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.
安富利:
Trans GP BJT NPN 12V 3A 4-Pin3+Tab SOT-89 T/R
Chip1Stop:
Trans GP BJT NPN 12V 3A 4-Pin3+Tab SOT-89 T/R
Verical:
Trans GP BJT NPN 12V 3A 2000mW 4-Pin3+Tab SOT-89 T/R
Win Source:
TRANS NPN 12V 3A SOT-89
DeviceMart:
TRANSISTOR NPN 12V 3000MA SOT-89
频率 150 MHz
额定电压DC 12.0 V
额定电流 3.00 A
极性 NPN
耗散功率 2 W
击穿电压集电极-发射极 12 V
集电极最大允许电流 3A
最小电流放大倍数hFE 500 @100mA, 2V
额定功率Max 2 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2000 mW
安装方式 Surface Mount
引脚数 4
封装 SOT-89-3
封装 SOT-89-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
