GTL2018PW,118

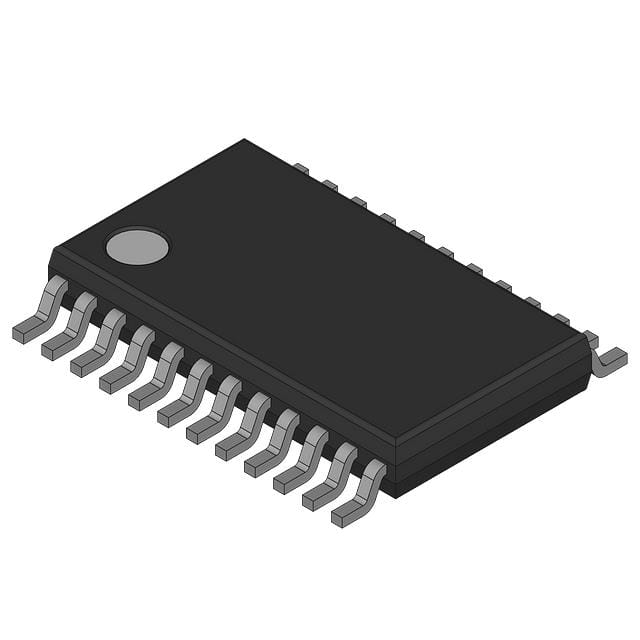

GTL2018 - 8Bit LVTTL to GTL transceiver TSSOP2 24Pin

Overview

The GTL2018 is an octal translating transceiver designed for 3.3 V LVTTL system interface with a GTL-/GTL/GTL+ bus.

The direction pin DIR allows the part to function as either a GTL-to-LVTTL sampling receiver or as an LVTTL-to-GTL interface.

The GTL2018 LVTTL inputs only are tolerant up to 5.5 V, allowing direct access to TTL or 5 V CMOS inputs.

MoreLess

## Features

* Operates as an octal GTL-/GTL/GTL+ sampling receiver or as an LVTTL to GTL-/GTL/GTL+ driver

* 3.0 V to 3.6 V operation with 5 V tolerant LVTTL input

* GTL input and output 3.6 V tolerant

* Vref adjustable from 0.5 V to 0.5VCC

* Partial power-down permitted

* Latch-up protection exceeds 100 mA per JESD78

* ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-CC101

* AEC-Q100 compliance available

* Package offered: TSSOP24
