Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm Through Hole
Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm THT
得捷:
RELAY GEN PURPOSE SPST 5A 12V
艾睿:
Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm THT
Chip1Stop:
Electromechanical Relay SPST-NO 5A 12VDC 515Ohm Through Hole
Verical:
Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm Through Hole
Newark:

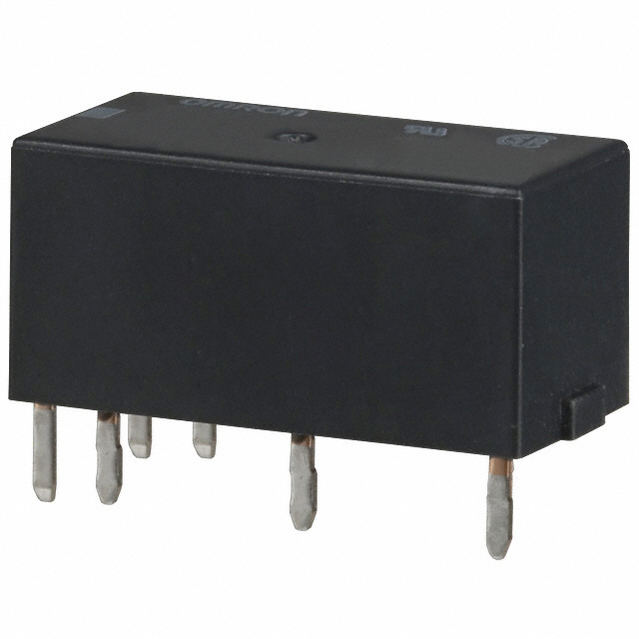

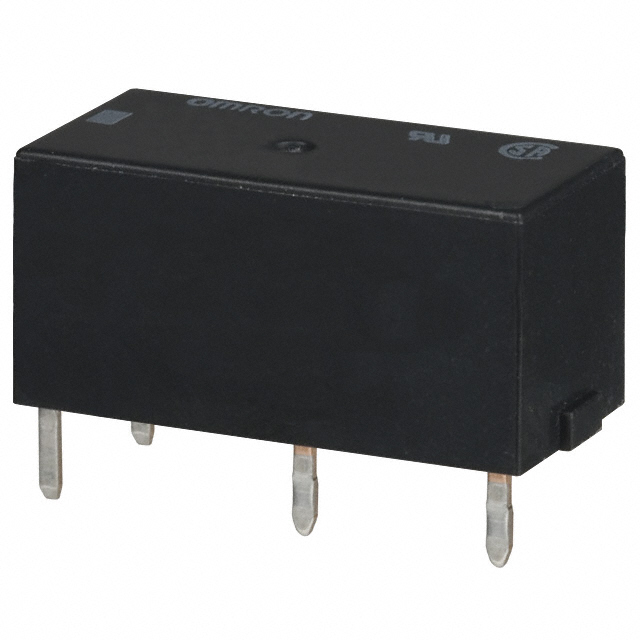

# OMRON ELECTRONIC COMPONENTS G6BK-1114P-US-DC12 Power Relay, SPST-NO, 12 VDC, 5 A, G6B Series, Through Hole, Latching Dual Coil
MASTER:
Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm THT
Online Components:
Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm THT
Electro Sonic:
Power Relay 12VDC 5A SPST-NO 21mm 10mm 10mm THT
额定电压DC 125 V
额定电压AC 380 V
触点类型 SPST-NO
功耗 280 mW
触点额定电流 5 A
线圈电压 12 VDC
线圈电流 23.3 mA
线圈电阻 515 Ω
载流 5.00 A
线圈电压DC 12 V
额定功率Max 150W, 1.25KVA
开关电流Max 5 A
工作温度Max 70 ℃
工作温度Min -25 ℃
安装方式 Through Hole
引脚数 6
长度 21 mm
宽度 10 mm
高度 10 mm
触点材质 Silver
工作温度 -25℃ ~ 70℃
产品生命周期 Not Recommended for New Design
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
