G22AP

NKK SWITCHES  G22AP  拨动开关, 不发光, DPDT, 开-无-开, 通孔安装

G Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The G Series toggles have not been tested for UL recognition or CSA certification.

得捷:
SWITCH TOGGLE DPDT 0.4VA 28V

立创商城:
G22AP

e络盟:
# NKK SWITCHES  G22AP  拨动开关, 不发光, DPDT, 开-无-开, 通孔安装

艾睿:

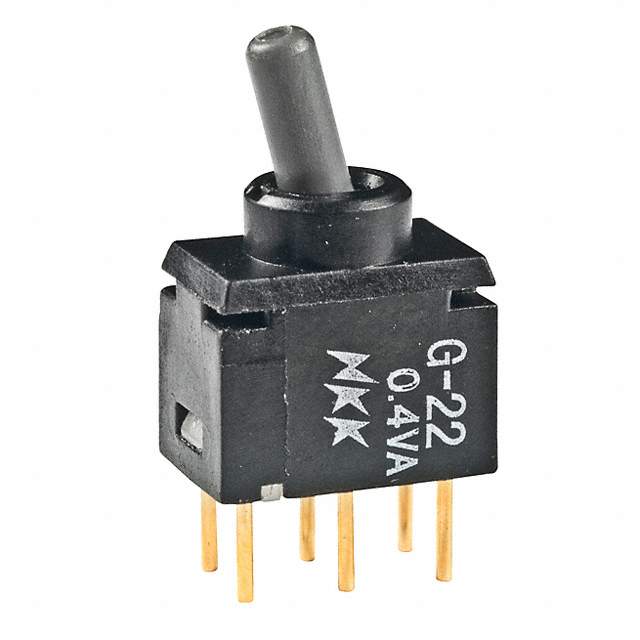

The process sealed G22AP toggle switch from NKK Switches allows you to control the status of your project. It has a DPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The G22AP toggle switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 7 mm long, 10.8 mm tall and 4.5 mm deep.

Allied Electronics:
Switch; Sealed; Toggle; DPDT; ON-NONE-ON; .150 Column Actuator; 0.4A; 28VAC/DC; Str PC

Chip1Stop:
Switch Toggle ON None ON DPDT Round Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount

Verical:
Switch Toggle ON None ON DPDT Round Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount

Newark:
# NKK SWITCHES  G22AP  Toggle Switch, Non Illuminated, DPDT, On-None-On, Through Hole
