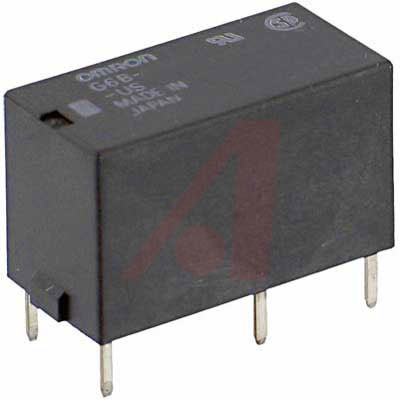

Power Relay 12VDC 5A SPST-NO/SPST-NC 20mm 11mm 11mm Through Hole
Power PCB Relay, 5 A Max. Current Rating, PCB Mounting Type, Ag-Alloy Contact Material
Standard and high capacity, latching and non-latching, sealed, power PCB relay.Unique moving magnet armature moving loop system reduces relay size, magnetic interference, and contact bounce time.
额定电压DC 125 V
额定电压AC 380 V
额定电流 5 A
触点类型 SPST-NO
功耗 300 mW
触点额定电流 5 A
线圈电压 12.0V, 12.0Vmax
线圈电流 25 mA
线圈电阻 480 Ω
载流 5.00 A
线圈电压DC 12 V
额定功率Max 150W, 1.25KVA
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 380 VAC
安装方式 Through Hole
引脚数 6
封装 DIP
长度 20.0 mm
宽度 10.0 mm
高度 11 mm
封装 DIP
触点材质 Silver
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
