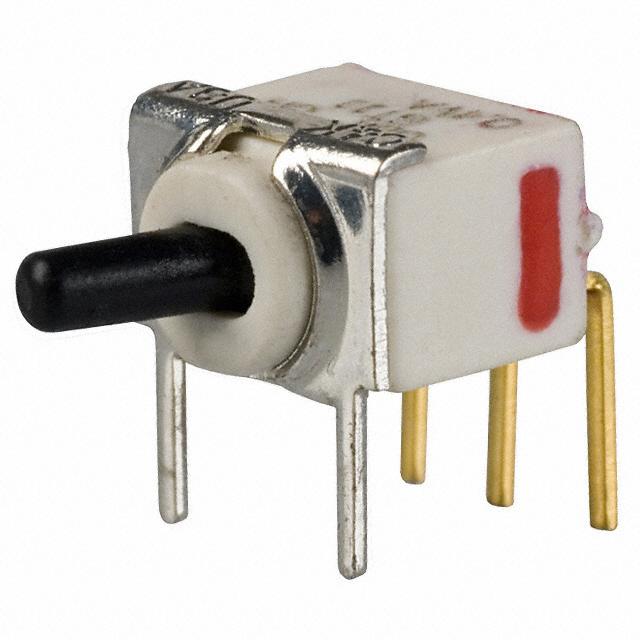

拨动开关 Toggle Switch
拨动 SPST 通孔,直角
得捷:
SWITCH TOGGLE SPST 0.4VA 20V
立创商城:
拨动开关 Toggle Switch
艾睿:
With this sealed GT12MABE toggle switch from C&a;K Components you can toggle on or off various components of your application. It has a SPST configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The GT12MABE toggle switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 5.38 mm tall.
安富利:
Switch Toggle OFF None ON SPST Round Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
Chip1Stop:
Switch Toggle OFF None ON SPST Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
Verical:
Switch Toggle OFF None ON SPST Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Bulk
Newark:
# C & K COMPONENTS GT12MABE Toggle
MASTER:
Sealed Ultraminiature Toggle Switch
Electro Sonic:
Sealed Ultraminiature Toggle Switch
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
排数 1
触点类型 SPST
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 散装
长度 7.01 mm
高度 5.38 mm
封装 散装
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
