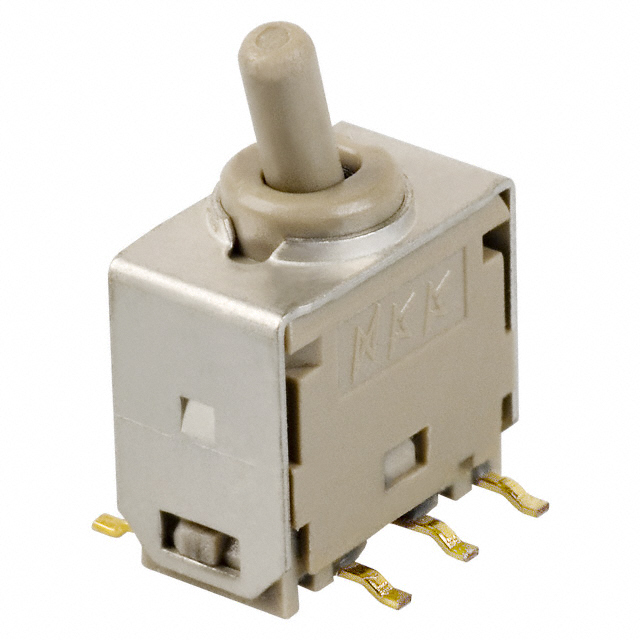

Switch Toggle ON None ON DPDT Round Lever Gull Wing 0.1A 28VAC 28VDC 0.4VA PC Mount Tray
G Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The G Series toggles have not been tested for UL recognition or CSA certification.
得捷:
SWITCH TOGGLE DPDT 0.4VA 28V
贸泽:
Toggle Switches DPDT ON NONE ON
艾睿:
Switch Toggle ON None ON DPDT Round Lever Gull Wing 0.1A 28VAC 28VDC 0.4VA PC Mount Tray
Allied Electronics:
SWITCH TOGGLE DPDT 0.4VA 28V
Verical:
Switch Toggle ON None ON DPDT Round Lever Gull Wing 0.1A 28VAC 28VDC 0.4VA PC Mount Tray
Powell:
ULTRA MINIATURE TOGGLE/SMD
触点电镀 Gold
额定电压DC 28 V
接触器类型 Standard
额定电压AC 28 V
额定电流 100 mA
绝缘电阻 500 MΩ
排数 2
额定功率 0.4 VA
方向 Vertical
触点类型 DPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 80 mΩ
安装方式 Surface Mount
长度 8.5 mm
宽度 7.6 mm
高度 12.9 mm
触点材质 Phosphor Bronze
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
