G12JHF概述

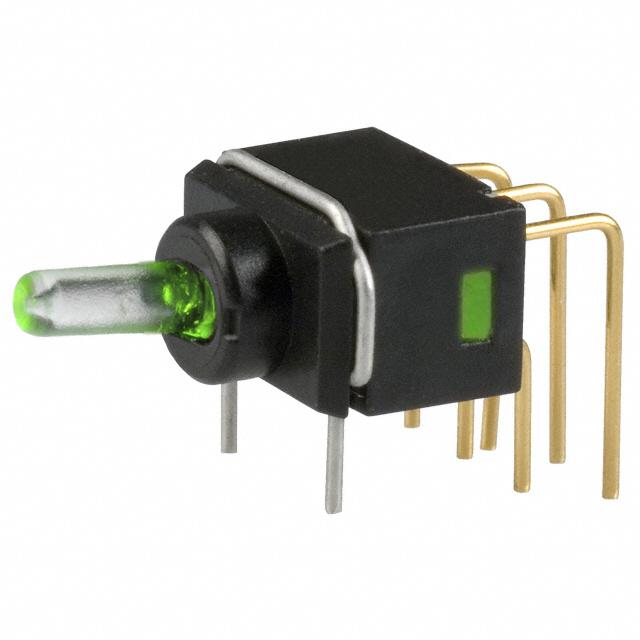

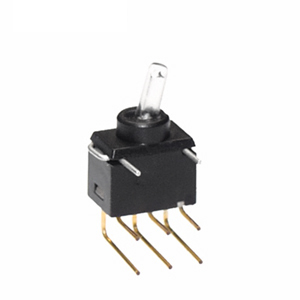

NKK SWITCHES  G12JHF  拨动开关, G系列, 发光, SPDT, 开-开, 通孔安装

The G series process sealed Ultra-miniature Toggle Switch with washable through-hole PCB -mount. Ultra-miniature size allows high-density mounting and extreme light weight makes these switches ideal for handheld equipment. Fully sealed body construction prevents contact contamination and allows time-saving automated soldering and washing. Its STC contact mechanism offers benefits unavailable in conventional mechanisms as smooth, positive detent actuation, increased contact stability and unparalleled logic-level reliability. Tape-reel and stick-tube packaging allow rapid automated surface mount device placement. Heat-resistant resin used for housing, base and actuator of SMD allows for vapour-phase and infrared reflow soldering. Gull-wing terminals on SMDs provide mechanical stability during soldering and simplified solder-joint inspection.

.
Moulded-in, epoxy sealed terminals lock out flux, solvents and other contaminants
.
Round terminals facilitate easier through-hole mounting on PCBs
.
Matching indicators available
G12JHF中文资料参数规格
技术参数

触点电镀 Gold

额定电压DC 28 V

接触器类型 Standard

额定电压AC 28 V

绝缘电阻 500 MΩ

排数 1

方向 Right Angle

触点类型 SPDT

接触电阻 80.0 mΩ

额定电流Max 0.1A @28VAC, 28VDC

工作温度Max 55 ℃

工作温度Min -25 ℃

接触电阻Max 80 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 7.8 mm

宽度 4.90 mm

高度 4.9 mm

物理参数

颜色 Green

触点材质 Phosphor Bronze

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买G12JHF
型号: G12JHF
制造商: NKK 日本长野
描述:NKK SWITCHES  G12JHF  拨动开关, G系列, 发光, SPDT, 开-开, 通孔安装
