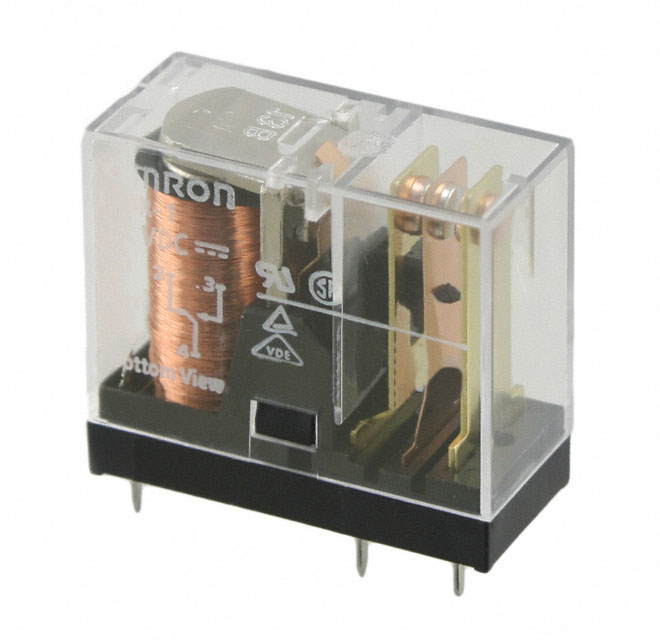

Power Relay 240VAC 10A SPDT 29mm 13mm 25.5mm Through Hole
• 1General purpose power Relays of single-pole10 A and double-pole 5 A. • Safety-oriented design with dielectric strength of 5,000 V between coil and contacts, and surge resistance of 10,000 V. • AC and DC types are both available for operational coils.
艾睿:
Power Relay 240VAC 10A SPDT29x13x25.5mm THT
Allied Electronics:
RELAY
安富利:
Electromechanical Relay SPDT 10A 240VAC 30KOhm Through Hole
Chip1Stop:
Electromechanical Relay SPDT 10A 240VAC 30KOhm Through Hole
Verical:
Electromechanical Relay 240VAC 30KOhm 10A SPDT 29x13x25.5mm THT Power Relay
MASTER:
Power Relay 240VAC 10A SPDT29x13x25.5mm THT
Electro Sonic:
Power Relay 240VAC 10A SPDT29x13x25.5mm THT
额定电压DC 125 V
额定电压AC 380 V
触点类型 SPDT
功耗 900 mW
触点额定电流 10 A
线圈电流 3.8 mA
线圈电压AC 240 V
线圈电阻 30 KΩ
额定电流Max 10 A
线圈功率 900 mW
额定功率Max 300W, 2.5KVA
开关电流Max 10 A
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 5
长度 29 mm
宽度 13 mm
高度 25.5 mm
触点材质 Silver
工作温度 -40℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
