Switch Rocker ON None ON SPDT PC Pins Paddle Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
摇臂
得捷:
SWITCH ROCKER SPDT 0.4VA 28V
贸泽:
Rocker Switches SPDT ON-ON RED R/A PADDLE ACTUATOR
艾睿:

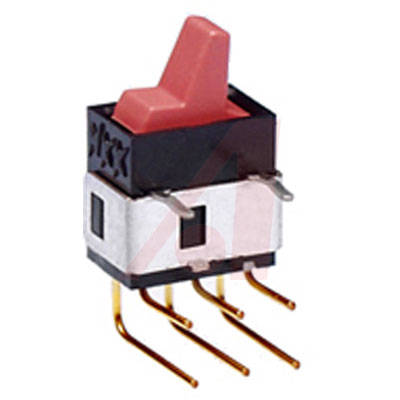

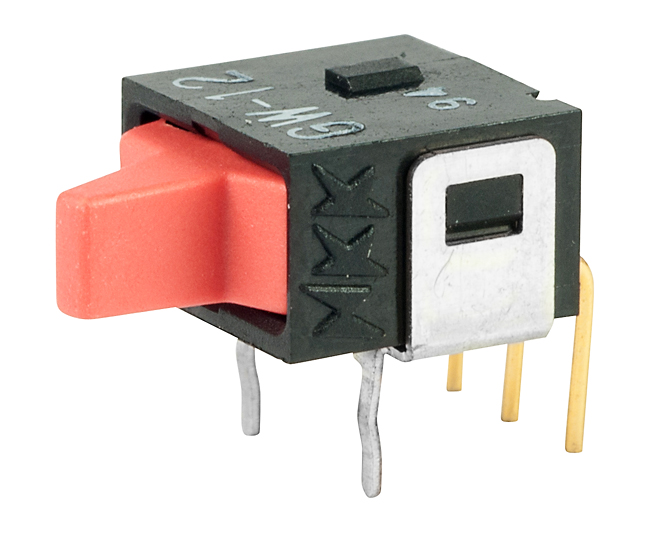

Implementing this GW12LCH rocker switch from NKK Switches will give the user complete control. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This rocker switch panel has a minimum operating temperature of -30 °C and a maximum of 85 °C. The GW12LCH rocker switch panel has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 7.5 mm long, 5.4 mm tall and 11.68 mm deep.
Allied Electronics:
SWITCH ROCKER SPDT 0.4VA 28V
Verical:
Switch Rocker ON None ON SPDT PC Pins Paddle Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
Powell:
ULTRA MINIATURE ROCKER/PC
触点电镀 Gold
额定电压DC 28 V
额定电压AC 28 V
排数 1
额定功率 0.4 VA
方向 Right Angle
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 80 mΩ
安装方式 Through Hole
长度 7.5 mm
高度 5.4 mm
颜色 Red
触点材质 Phosphor Bronze
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
