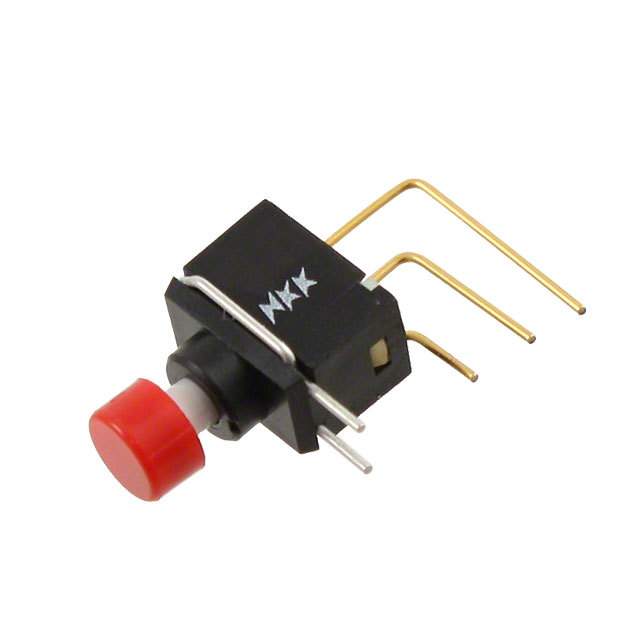

GB15AV-XC

NKK SWITCHES  GB15AV-XC  按钮开关, 非发光, SPDT, 0.1A, 红色

Ultra-Miniature Fully Illuminated Plungers, PCB Mount, 500 VAC Min. Dielectric Strength

Fully illuminated plunger for highly visible status indication with single color LED in red, green, or amber. Ultra-miniature size allows high density mounting, and extremely light weight makes these switches ideal for handheld equipment.

得捷:
SWITCH PUSH SPDT 0.4VA 28V

贸泽:
Pushbutton Switches ON-ON .157 RED CAP VERTICAL PC .4VA

e络盟:
# NKK SWITCHES  GB15AV-XC  按钮开关, 非发光, SPDT, 0.1A, 红色

艾睿:
Never worry about turning off components or cutting off certain sections of a circuit with this GB15AV-XC push button switch from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This push switch has an operating temperature range of -30 °C to 85 °C. The GB15AV-XC push switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 5.3 mm long, 7.4 mm tall and 16.76 mm deep.

Allied Electronics:
Switch; Sealed; Ultra Mini P/B; SPDT; ON-ON; Red Cap; 0.4VA; 28VAC/DC; Vert PC Term

Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Thru-Hole PC Pins

Newark:
# NKK SWITCHES  GB15AV-XC  Pushbutton Switch, SPDT, On-On, 28 V, 28 V, 100 mA, Solder

Powell:
ULTRA MINIATURE PUSHBUTTON/PC
