GAMMA LoRa™ 射频遥测模块**GAMMA-868** 模块设计用于作为长距离遥测系统或调制解调器操作。 它可作为遥测模式发射器、接收器或收发器。射频载频：869.5MHz ISM 频段 射频功率输出：+20dBm 接收器灵敏度：-137dBm @ 240bps SF=12, CR=4/8 LoRa™ 展频技术 范围：远达 16Km（瞄准线） 主机通信：串行 UART，带 CTS/RTS 流量控制 8 个 GPIO 学习按钮 SMA 天线连接器（SIL 型号） 电源：（903-3030，903-3034）+1.8V 至 +3.6V 直流 电源：R 型号（122-5255，122-5256）+4V 至 9V 直流 板尺寸：51 x 20mm 应用：远程控制、远程网络、远程感应、用于物联网 IoT 的长距离通信 **RS 产品代码** 903-3030 GAMMA-868 SIL 格式 903-3034 GAMMA-868-SO SMT 122-5255 GAMMA-868 SIL 格式（**_R 型号 4 V 直流 - 9 V 直流_）** 122-5256 GAMMA-868-SO SMT 格式（**_R 型号 4 V 直流 - 9 V 直流）_** ### 认可CE### 无线电模块 - RF Solutions

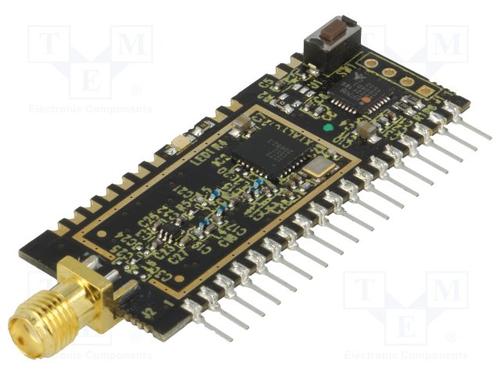

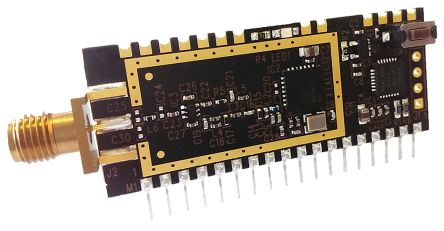

The is a SIL RF Telemetry Module with 868MHz frequency band provides a reliable transceiver based industrial remote control for use as a modem or a bidirectional switch. GAMMA is easy to use with direct no-volt Switch input and direct switching telemetry outputs and serial data in/data out. The GAMMA uses the latest OFDM, spread spectrum technology and extensive algorithm enhancements to achieve an industry leading 16km 10mile range. Two or more modules may be combined to provide a simple or complex network of radio controls and/or radio modems. It is suitable for use with remote control and networking, remote switching and remote traffic light applications.
- .
- Range up to 16km
- .
- 38.4K Serial data communications
- .
- 8 Switch inputs
- .
- 8 Digital outputs
- .
- 4 Acknowledged channels
- .
- Spread spectrum technology
- .
- No external components
- .
- Low voltage
