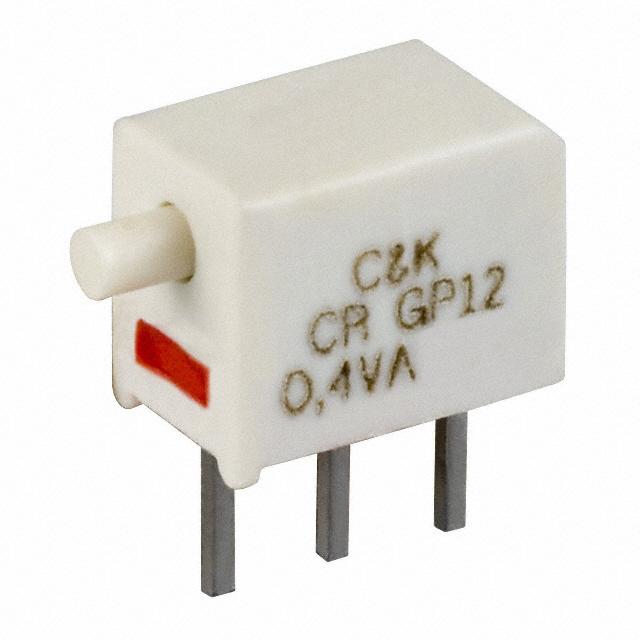

C & K COMPONENTS GP12MCBE 按钮开关, SPDT, 开, 20 V, 20 V, 焊接
按钮 SPDT 标准 通孔,直角
得捷:
SWITCH PUSH SPDT 0.4VA 20V
立创商城:
GP12MCBE
贸泽:
Pushbutton Switches SPDT Tiny Sealed Pushbutton-GP Ser
e络盟:
按钮开关, 标准, GP系列, SPDT, 开-开, 柱塞
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Bulk
安富利:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
TME:
Switch: push-button; Positions:2; SPDT; 0.1A/4VAC; 0.1A/4VDC; IP57
Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Newark:
# C & K COMPONENTS GP12MCBE Pushbutton Switch,RIGHT ANGLE,SPDT,ON-ON,PC TAIL Terminal,PCB Hole Count:3
儒卓力:
**SPDT ON-MOM THT Rightangle **
MASTER:
Sealed Ultraminiature Pushbutton Switches
Electro Sonic:
Sealed Ultraminiature Pushbutton Switches
额定电压DC 20 V
额定电压AC 20 V
绝缘电阻 10 GΩ
额定功率 0.4 VA
触点类型 SPDT
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 Through Hole
高度 5.79 mm
封装 Through Hole
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 传感与仪器, 医用, 通信与网络, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GP12MCBE C&K Components | 当前型号 | 当前型号 |
GP12MCKE C&K Components | 类似代替 | GP12MCBE和GP12MCKE的区别 |
