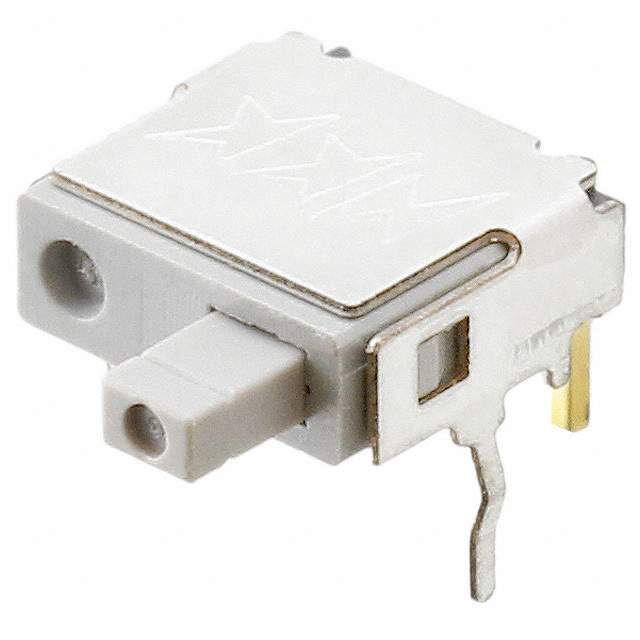

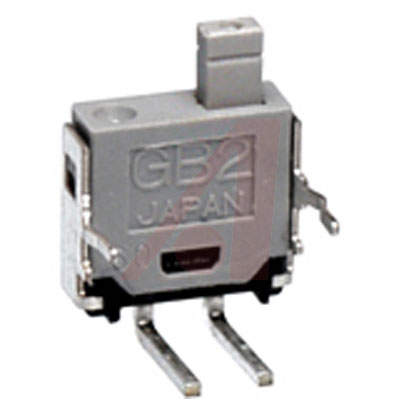

NKK SWITCHES GB215AH 按钮开关, 非发光, SPST, 0.1A
按钮 SPST-NO 标准 通孔,直角
得捷:
SWITCH PUSH SPST-NO 0.4VA 28V
贸泽:
按钮开关 SPDT ON-ON BLK RT ANGLE
e络盟:
按钮开关, 非发光, SPST, 0.1A
艾睿:
Easily reset the current state or mode using this GB215AH push button switch manufactured from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPST configuration. This push switch has an operating temperature range of -25 °C to 70 °C. The GB215AH push switch has a PC pin termination style. This product is 8.42 mm long, 3.25 mm tall and 10.93 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
ULTRA MINIATURE PUSHBUTTON/PC
Verical:
Switch Push Button OFF ON SPST Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Newark:
# NKK SWITCHES GB215AH Pushbutton Switch, SPST, Off-On, 28 V, 28 V, 100 mA, Solder
Powell:
ULTRA MINIATURE PUSHBUTTON/PC
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.0142 A
排数 1
方向 Right Angle
触点类型 SPST
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 28 VAC
接触电阻Max 80 mΩ
安装方式 Through Hole
高度 3.25 mm
触点材质 Phosphor Bronze
工作温度 -25℃ ~ 70℃
产品生命周期 50000 Cycles
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
