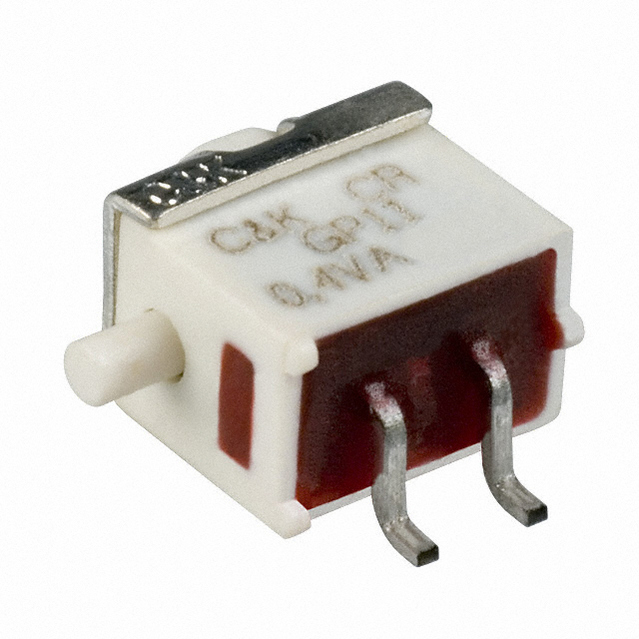

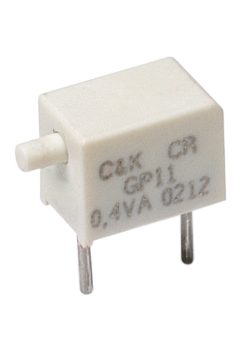

C & K COMPONENTS GP11MSA1BE 按钮开关, SPST, 瞬时式弹簧复位, 20 V, 20 V, SMD
The is a sealed ultra miniature Pushbutton Switch with gold over nickel plated copper alloy contacts. It is made of high temperature flame-retardant heat stabilized glass filled nylon 4/6 case and bushing.
- .
- Process compatible, withstands most soldering and washing processes
- .
- -40 to 85°C Operating temperature range
- .
- UL94V-0 Flammability rating
额定电压DC 20 V
额定电压AC 20 V
绝缘电阻 1000 MΩ
额定功率 0.4 VA
触点类型 SPST
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 Surface Mount
封装 SMD
高度 5.46 mm
封装 SMD
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, 传感与仪器, 医用, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GP11MSA1BE C&K Components | 当前型号 | 当前型号 |
GP11MCBE C&K Components | 完全替代 | GP11MSA1BE和GP11MCBE的区别 |
GP11MSABE C&K Components | 完全替代 | GP11MSA1BE和GP11MSABE的区别 |
GP11MSA1KE C&K Components | 完全替代 | GP11MSA1BE和GP11MSA1KE的区别 |
