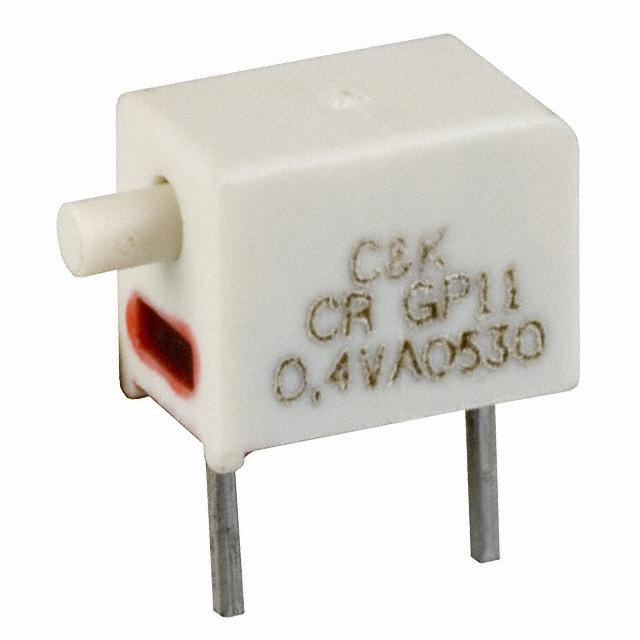

GP 系列 超小型 密封 单刀单掷 关-瞬时 表面贴装 按键开关
按钮 SPST-NO 标准 通孔,直角
得捷:
SWITCH PUSH SPST-NO 0.4VA 20V
立创商城:
GP11MCBE
贸泽:
Pushbutton Switches OFF-ON SPST PCB
艾睿:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Bulk
安富利:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Chip1Stop:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Verical:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Newark:
# C & K COMPONENTS GP11MCBE Pushbutton Switch,RIGHT ANGLE,SPST,OFF-ON,PC TAIL Terminal,PCB Hole Count:3
儒卓力:
**SPST OFF-MOM THT Rightangle **
MASTER:
Sealed Ultraminiature Pushbutton Switches-SPST-Through Hole-0.4A@20VAC and 20 VDC-40,000 make-and-break cycles at full load
Online Components:
Sealed Ultraminiature Pushbutton Switches
Electro Sonic:
Sealed Ultraminiature Pushbutton Switches-SPST-Through Hole-0.4A@20VAC and 20 VDC-40,000 make-and-break cycles at full load
触点电镀 Gold, Gold over Nickel
额定电压DC 20 V
额定电压AC 20 V
绝缘电阻 1000 MΩ
额定功率 0.4 VA
触点类型 SPST
易燃性等级 UL 94 V-0
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 -
高度 5.79 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GP11MCBE C&K Components | 当前型号 | 当前型号 |
EP11FPD1AVBE C&K Components | 类似代替 | GP11MCBE和EP11FPD1AVBE的区别 |
EP11SD1SAPE C&K Components | 类似代替 | GP11MCBE和EP11SD1SAPE的区别 |
EP11SD1V3BE C&K Components | 类似代替 | GP11MCBE和EP11SD1V3BE的区别 |
