G3PE-525B-3N DC12-24概述
Relay SSR 10mA 30V DC-IN 25A 528V AC-OUT 8Pin

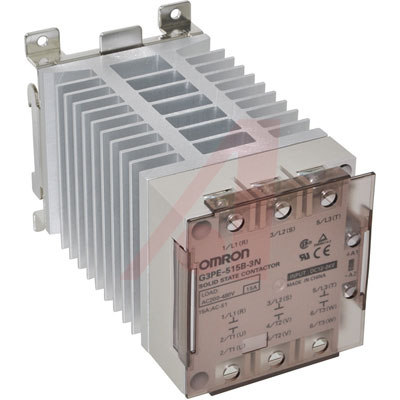

The is a 3-phase Solid State Contactor with heat sinks and zero cross function. Solid state contactor is suitable for three-phase heaters reduced installation work with DIN track mounting. It has phototriac coupler insulation and yellow operation indicator.
- .
- Surge pass protection improved surge dielectric strength for output currents
- .
- Slim design with 3-phase output
G3PE-525B-3N DC12-24中文资料参数规格
技术参数
工作电压 30.0V max
额定电流 25 A
触点类型 3PST
负载电流 25 A
额定电压 200VAC ~ 480VAC
工作电压Min 9.6 VDC
工作电压Max 30 VDC
输入电压 12VDC ~ 24VDC
封装参数
安装方式 Screw Terminals, DIN Rail
封装 SSR with Integrated Heat Sink
外形尺寸
封装 SSR with Integrated Heat Sink
其他
产品生命周期 Active
包装方式 Bulk
制造应用 HVAC, Industrial
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
