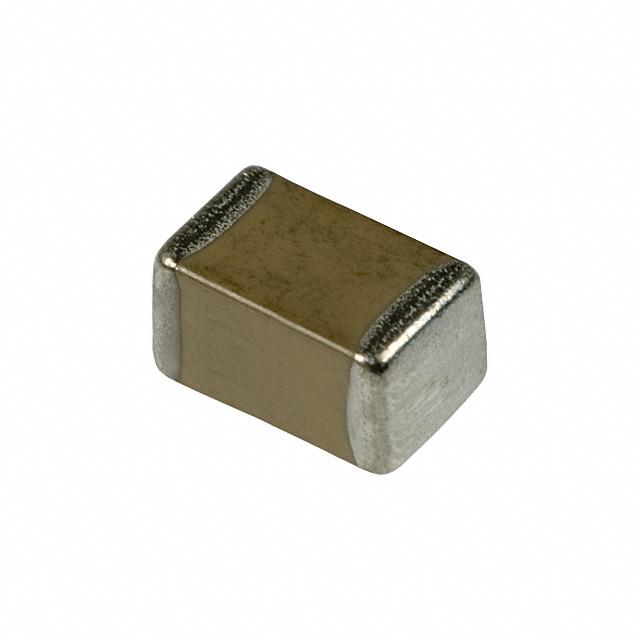

0402 2.2nF ±10% 100V X7R
2200 pF ±10% 100V 陶瓷器 X7R 0402(1005 公制)
得捷:
CAP CER 2200PF 100V X7R 0402
立创商城:
2.2nF ±10% 100V
艾睿:
You can use multiple capacitors of different parameters choosing this GCM155R72A222KA37D multilayer ceramic capacitor from Murata! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. Its capacitance value is 0.0022uF. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.0022uF 100V X7R 10% SMD 0402 125°C Paper T/R
Verical:
Cap Ceramic 0.0022uF 100V X7R 10% Pad SMD 0402 125C Automotive T/R
额定电压DC 100 V
电容 0.0022 µF
容差 ±10 %
电介质特性 X7R
产品系列 GCM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GCM155R72A222KA37D muRata 村田 | 当前型号 | 当前型号 |
GCM155R72A222KA37J 村田 | 完全替代 | GCM155R72A222KA37D和GCM155R72A222KA37J的区别 |
GCM155R71H222KA37D 村田 | 功能相似 | GCM155R72A222KA37D和GCM155R71H222KA37D的区别 |
GCM155R72A222KA37W 村田 | 功能相似 | GCM155R72A222KA37D和GCM155R72A222KA37W的区别 |
