0603 20pF ±5% 50V C0G
20pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 1608 Metric
得捷:
CAP CER 20PF 50V C0G/NP0 0603
艾睿:

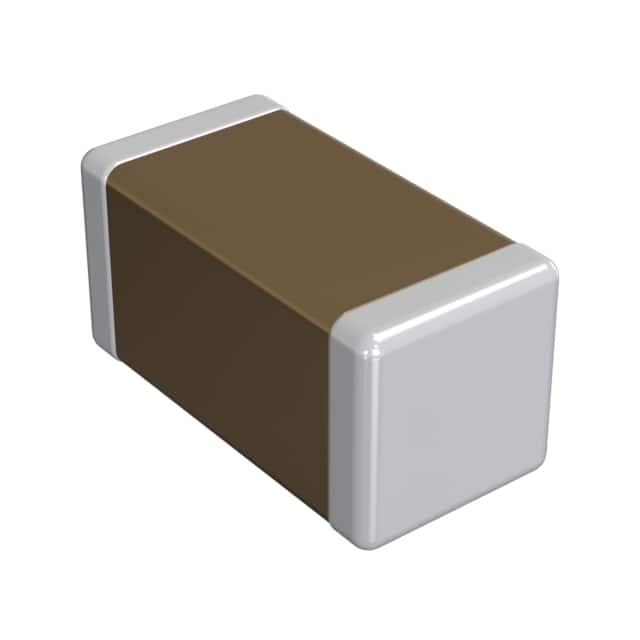

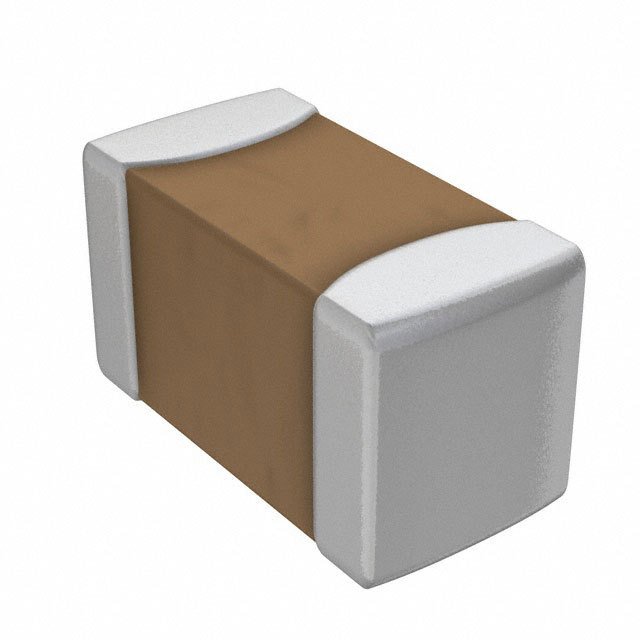

Do you need a capacitor with high stability and low losses? Then this GRM1885C1H200JA01J multilayer ceramic capacitor from Murata is the solution you are looking for! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. Its capacitance value is 20pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
额定电压DC 50.0 V
电容 20 pF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 800 µm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GRM1885C1H200JA01J muRata 村田 | 当前型号 | 当前型号 |
GRM1885C1H200JA01D 村田 | 完全替代 | GRM1885C1H200JA01J和GRM1885C1H200JA01D的区别 |
GQM1885C1H200JB01D 村田 | 类似代替 | GRM1885C1H200JA01J和GQM1885C1H200JB01D的区别 |
GCM1885C1H200JA16D 村田 | 类似代替 | GRM1885C1H200JA01J和GCM1885C1H200JA16D的区别 |
