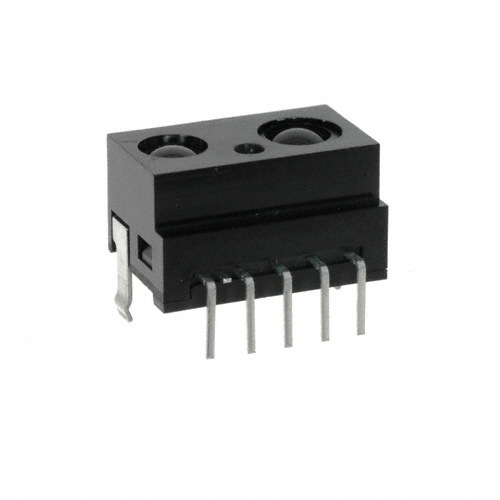

GP2Y0D340K

SHARP  GP2Y0D340K  距离传感器, 数字输出

The from is a distance measuring sensor unit. This unit is composed of an integrated combination of PSDposition sensitive detector, IRED infrared emitting diode and signal processing circuit. The variety of the reflectivity of the object, environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. The output voltage of this sensor stays high in case an object exists in the specified distance range. So this sensor can also be used as proximity sensor. Typical applications include touch-less switch, sensor for energy saving and amusement equipment.

.

Detecting distance is typically 400mm

.

Digital output type

.

15mm x 9.6mm x 8.7mm package size

.

Current consumption is typically 31mA

.

Supply voltage range from 4.5V to 5.5V

.

High speed measurement cycle of 8ms

In order to stabilize power supply line, recommended to use a bypass capacitor of 47µF or more between VCC and GND.
