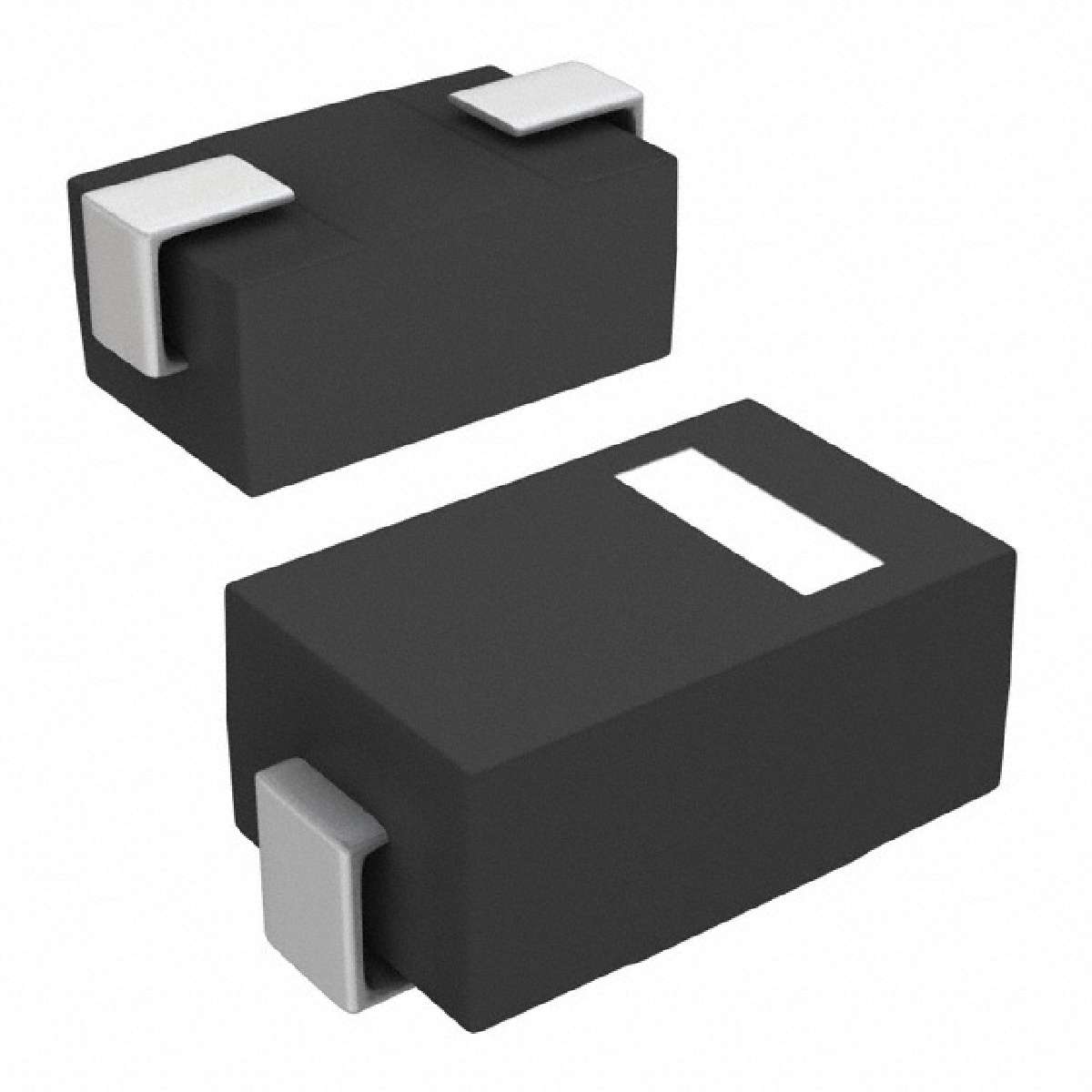

VISHAY GF1D-E3/67A 标准恢复二极管, 单, 200 V, 1 A, 1.1 V, 3 µs, 30 A
The is a surface mount glass passivated Rectifier Diode with matte tin-plated leads terminals, UL94V-0 flame-rated moulded epoxy over glass body case and colour band denotes cathode end polarity. Superectifier structure for high reliability condition. Ideal for automated placement.
针脚数 2
正向电压 1.1V @1A
反向恢复时间 3 µs
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.1 V
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214BA
长度 4.75 mm
宽度 2.9 mm
高度 2.74 mm
封装 DO-214BA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, 电源管理, Automotive, 通信与网络, 消费电子产品, Communications & Networking, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GF1D-E3/67A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
GF1B-E3/5CA 威世 | 完全替代 | GF1D-E3/67A和GF1B-E3/5CA的区别 |
GF1D-E3 威世 | 完全替代 | GF1D-E3/67A和GF1D-E3的区别 |
GF1A-E3/67A 威世 | 类似代替 | GF1D-E3/67A和GF1A-E3/67A的区别 |
