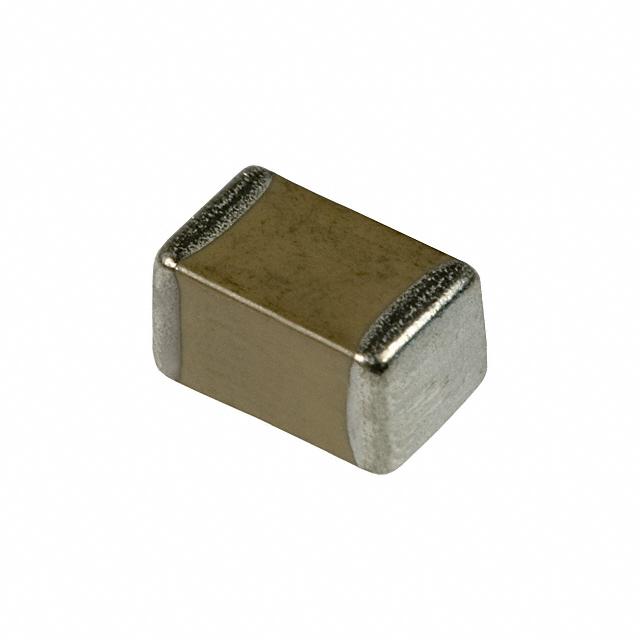

0402 33nF ±10% 16V X7R
GCM Series
Features
This product can be used for safety devices, such as the drive system control for engine ECU, air bags, and ABS. This product has cleared test conditions more severe than that of general products GRM Series even in temperature cycle and humidity load tests.
1\. Ideal for power trains and safety devices in automobiles. We also offer a lineup for 150°C that can be used in the engine room.
2\. Can be used at 125°C and 150°C temperatures.
3\. Sn plating is applied to the external electrodes; excellent solder ability.
额定电压DC 16.0 V
电容 0.033 µF
容差 ±10 %
电介质特性 X7R
产品系列 GCM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GCM155R71C333KA37D muRata 村田 | 当前型号 | 当前型号 |
GCM155R71C333KA37J 村田 | 完全替代 | GCM155R71C333KA37D和GCM155R71C333KA37J的区别 |
CL05B333KO5NNNC 三星 | 类似代替 | GCM155R71C333KA37D和CL05B333KO5NNNC的区别 |
GCM155R71E333KA55D 村田 | 功能相似 | GCM155R71C333KA37D和GCM155R71E333KA55D的区别 |
