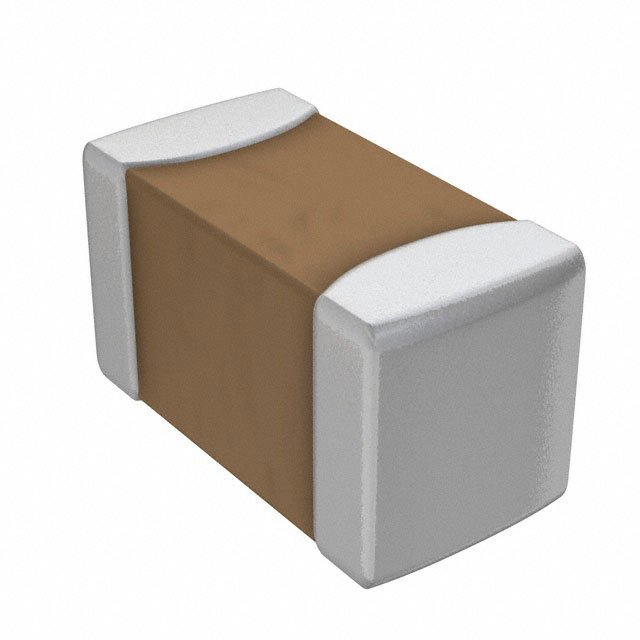

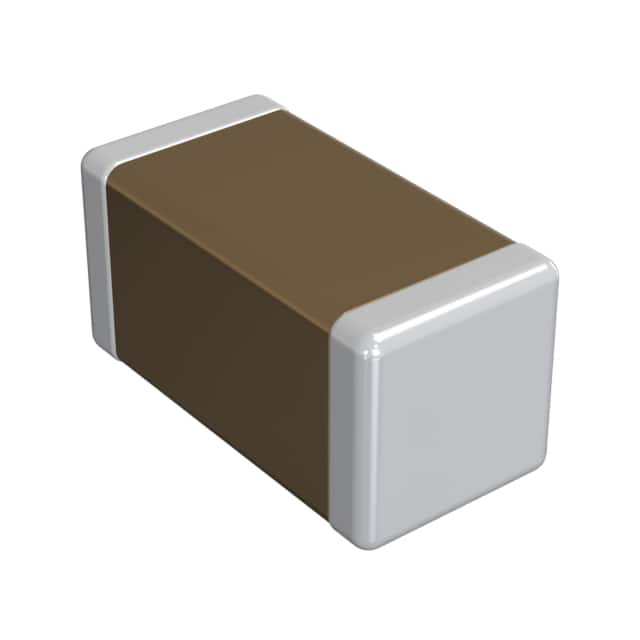

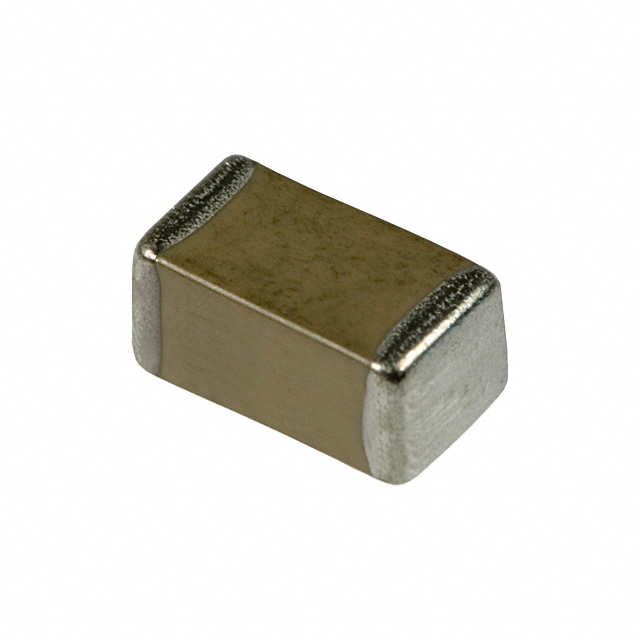

560 pF 10% 容差 100 V 0603 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 560PF 100V X7R 0603
立创商城:
560pF ±10% 100V
艾睿:
Due to the use of different ceramic dielectric materials used in this GRM188R72A561KA01D multilayer ceramic capacitor from Murata, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 560pF. It has a tolerance of 10%.
安富利:
Cap Ceramic 560pF 100V X7R 10% SMD 0603 125°C Paper T/R
Verical:
Cap Ceramic 560pF 100V X7R 10% Pad SMD 0603 125C T/R
额定电压DC 100 V
电容 560 pF
容差 ±10 %
电介质特性 X7R
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GRM188R72A561KA01D muRata 村田 | 当前型号 | 当前型号 |
06031C561KAT2A 艾维克斯 | 类似代替 | GRM188R72A561KA01D和06031C561KAT2A的区别 |
0603B561K101CT 台湾华科 | 类似代替 | GRM188R72A561KA01D和0603B561K101CT的区别 |
C0603C561K1RACTM 基美 | 类似代替 | GRM188R72A561KA01D和C0603C561K1RACTM的区别 |
