GCM188R71H153KA37D

GCM188R71H153KA37D图片1
GCM188R71H153KA37D图片2
GCM188R71H153KA37D图片3
GCM188R71H153KA37D图片4
GCM188R71H153KA37D图片5
GCM188R71H153KA37D图片6
GCM188R71H153KA37D图片7
GCM188R71H153KA37D图片8
GCM188R71H153KA37D图片9
GCM188R71H153KA37D图片10
GCM188R71H153KA37D图片11
GCM188R71H153KA37D图片12
GCM188R71H153KA37D图片13
GCM188R71H153KA37D图片14
GCM188R71H153KA37D概述

0603 15 nF 25V ±10% 表面贴装 多层陶瓷电容

MLCC-多层陶瓷器


得捷:
CAP CER 0.015UF 50V X7R 0603


立创商城:
15nF ±10% 50V


艾睿:
This GCM188R71H153KA37D multilayer ceramic capacitor from Murata is non-polarized so it may be connected either to positive or to negative voltage. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 0.015uF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.


安富利:
Cap Ceramic 0.015uF 50V X7R 10% SMD 0603 125°C Paper T/R


Chip1Stop:
Cap Ceramic 0.015uF 50V X7R 10% SMD 0603 125℃ Automotive T/R


Verical:
Cap Ceramic 0.015uF 50V X7R 10% Pad SMD 0603 125C Automotive T/R


GCM188R71H153KA37D中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 15 nF

容差 ±10 %

电介质特性 X7R

产品系列 GCM

工作温度Max 125 ℃

工作温度Min -55 ℃

精度 ±10 %

额定电压 50 V

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

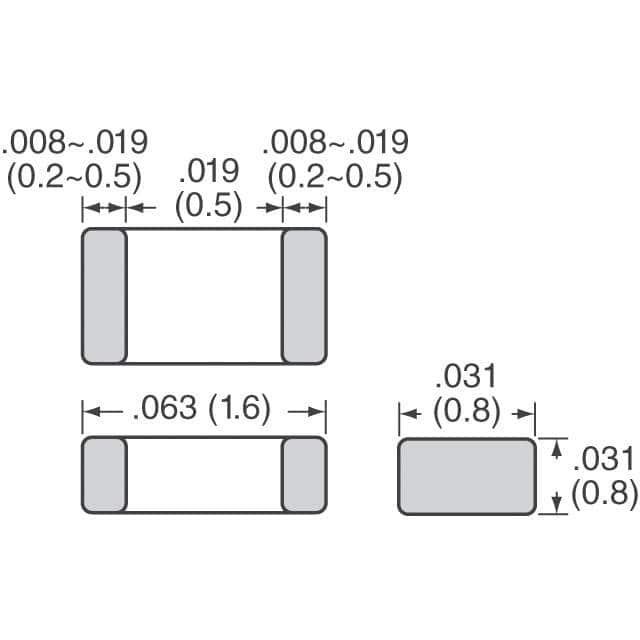

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.8 mm

封装公制 1608

封装 0603

厚度 0.8 mm

物理参数

材质 X7R/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Not Recommended

包装方式 Tape & Reel TR

最小包装 4000

制造应用 汽车级

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买GCM188R71H153KA37D
型号: GCM188R71H153KA37D
制造商: muRata 村田
描述:0603 15 nF 25V ±10% 表面贴装 多层陶瓷电容
替代型号GCM188R71H153KA37D
型号/品牌 代替类型 替代型号对比

GCM188R71H153KA37D

muRata 村田

当前型号

当前型号

CL10B153KB8NNNC

三星

类似代替

GCM188R71H153KA37D和CL10B153KB8NNNC的区别

GCM188R71H153KA37J

村田

类似代替

GCM188R71H153KA37D和GCM188R71H153KA37J的区别

06035C153KAT2A

艾维克斯

功能相似

GCM188R71H153KA37D和06035C153KAT2A的区别
