片状独石陶瓷电容器 Chip Monolithic Ceramic Capacitors
4pF ±0.05pF 50V Ceramic Capacitor C0G, NP0 0402 1005 Metric
得捷:
CAP CER 4PF 50V C0G/NP0 0402
艾睿:
Get more with less with Murata&s;s GRM1555C1H4R0WA01D multilayer ceramic capacitor which uses multiple layers of ceramic and metal to act as dielectric and electrodes. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. Its capacitance value is 4pF.
Verical:
Cap Ceramic 4pF 50V C0G 0.05pF Pad SMD 0402 125C T/R
额定电压DC 50.0 V
电容 4 pF
容差 ±0.05 pF
电介质特性 C0G/NP0
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402

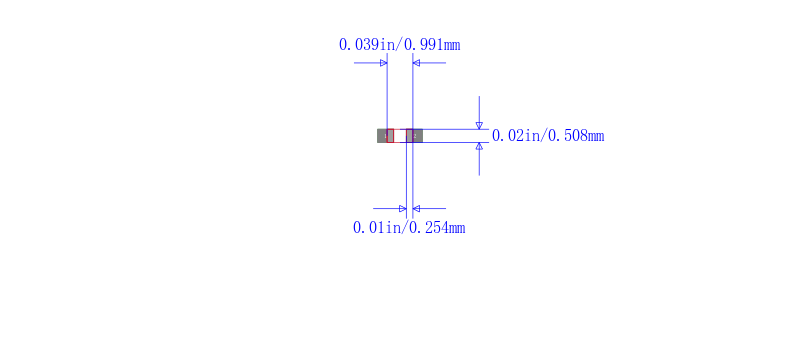

长度 1.00 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GRM1555C1H4R0WA01D muRata 村田 | 当前型号 | 当前型号 |
GRM1555C1H4R0WZ01D 村田 | 类似代替 | GRM1555C1H4R0WA01D和GRM1555C1H4R0WZ01D的区别 |
GJM1555C1H4R0WB01J 村田 | 类似代替 | GRM1555C1H4R0WA01D和GJM1555C1H4R0WB01J的区别 |
GJM1555C1H4R0WB01D 村田 | 功能相似 | GRM1555C1H4R0WA01D和GJM1555C1H4R0WB01D的区别 |
