GP02-40-E3/54

VISHAY  GP02-40-E3/54  标准功率二极管, 单, 4 kV, 250 mA, 3 V, 2 µs, 15 A

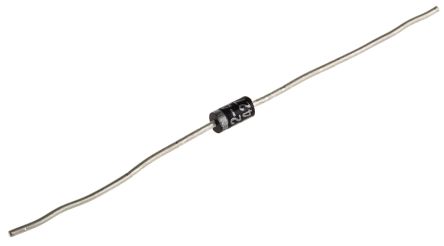

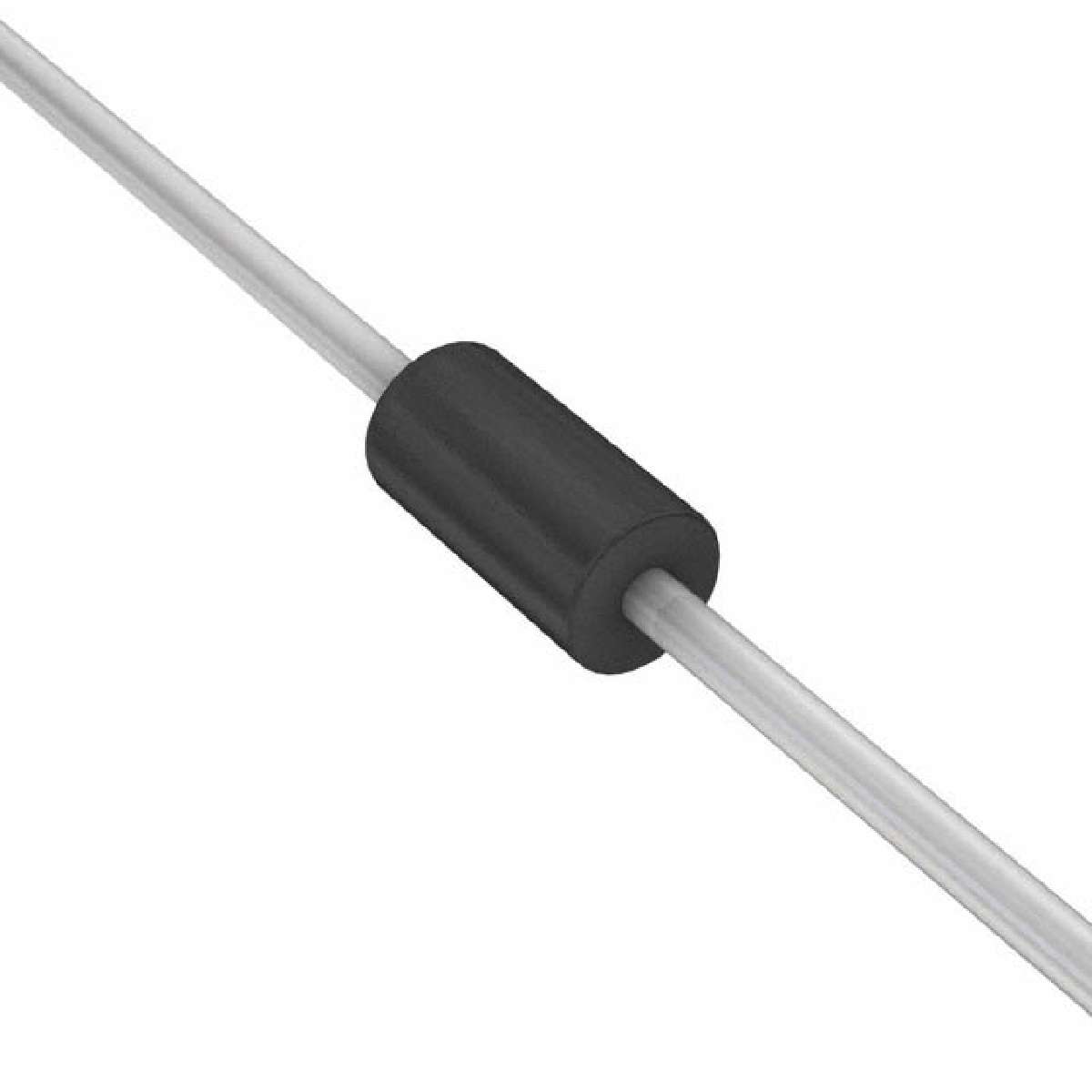

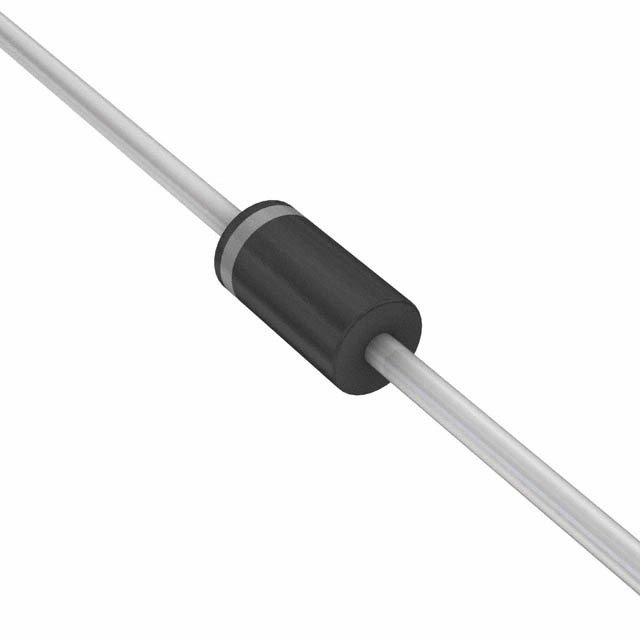

The is a high voltage glass passivated junction Plastic Rectifier with matte tin-plated leads terminals and UL94V-0 flame rated moulding compound case. The plastic rectifier features high forward surge capability, cavity-free glass-passivated junction and Superectifier structure for high reliability application. Colour band denotes cathode end polarity.

.

Low leakage current

.

2800V Maximum RMS voltage

.

4000V Maximum DC blocking voltage

.

3pF at 4V/1MHz Typical junction capacitance

.

130°C/W Typical thermal resistance
