0603 1.8nF ±10% 100V X7R
±10% 100V 陶瓷器 X7R 0603(1608 公制)
得捷:
CAP CER 1800PF 100V X7R 0603
艾睿:

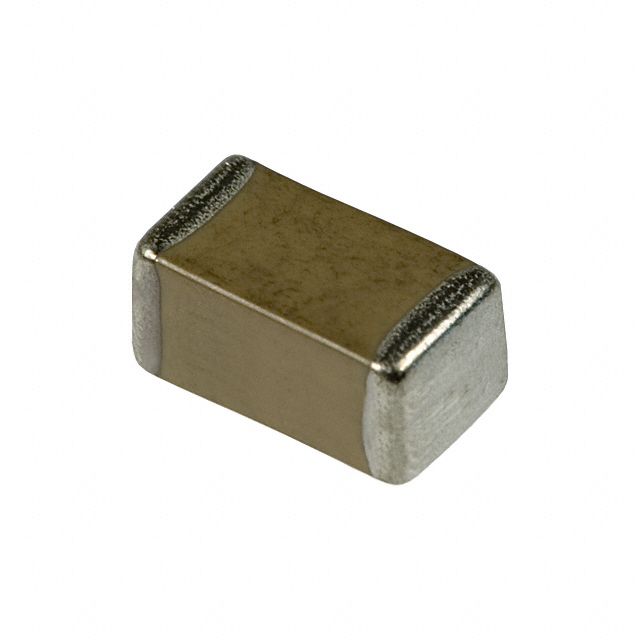

You can use multiple capacitors of different parameters choosing this GRM188R72A182KA01D multilayer ceramic capacitor from Murata! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its capacitance value is 0.0018uF. It has a tolerance of 10%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
Verical:
Cap Ceramic 0.0018uF 100V X7R 10% Pad SMD 0603 125C T/R
额定电压DC 100 V
电容 1800 pF
容差 ±10 %
电介质特性 X7R
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.60 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GRM188R72A182KA01D muRata 村田 | 当前型号 | 当前型号 |
GCJ188R72A182KA01D 村田 | 类似代替 | GRM188R72A182KA01D和GCJ188R72A182KA01D的区别 |
GCJ188R72A182KA01J 村田 | 类似代替 | GRM188R72A182KA01D和GCJ188R72A182KA01J的区别 |
GRM188R71H182KA01D 村田 | 功能相似 | GRM188R72A182KA01D和GRM188R71H182KA01D的区别 |
