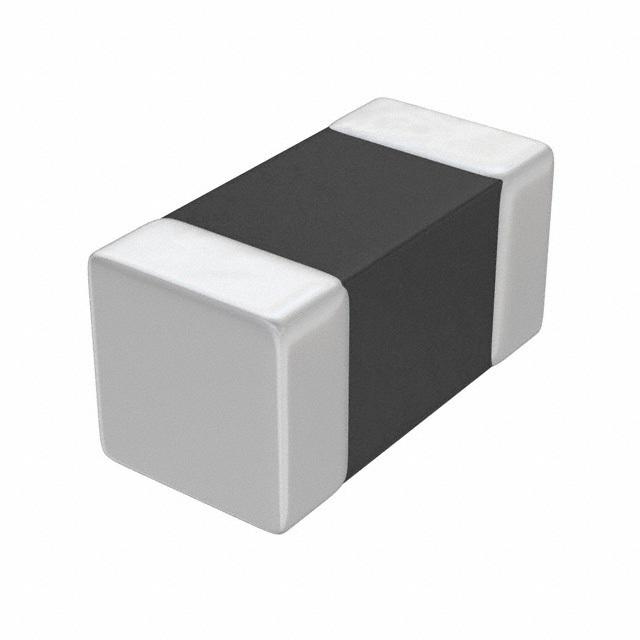

GCM1555C1H1R0CZ13D

0402 1pF ±0.25pF 50V C0G

■ Features

1\. The GCM series meet AEC-Q200 requirements.

2\. Higher resistance of solder-leaching due to the Ni-barriered termination, applicable for reflow-soldering, and flow-soldering GCM18/21/31 type only.

3\. The operating temperature range of R7/C7/5C series: -55 to 125 degree C.

4\. A wide selection of sizes is available, from miniature LxWxT:0.6x0.3x0.3mm to LxWxT: 3.2x2.5x2.5mm.

5\. The GCM series is available in paper or embossed tape and reel packaging for automatic placement.

6\. The GCM series is lead free product.

■ Applications

  Automotive electronic equipment Power-train, safety equipment
